The LS513-3 long tube handle uses a rubber sleeve over a steel pipe with black PA (nylon) fixtures and an M8 copper insert for strong, thread-stable fixing.
It is supplied in six lengths — 320, 370, 470, 570, 670 and 770 mm — to span wide cabinet and enclosure doors.
Typical applications include wide industrial enclosures, telecom cabinets, data center cabinets and machinery doors. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS513-3-320 ~ -770 | long tube handle, rubber sleeve, 6 lengths | Rubber sleeve, steel pipe, black PA fixture, M8 copper insert | Black PA fixtures |

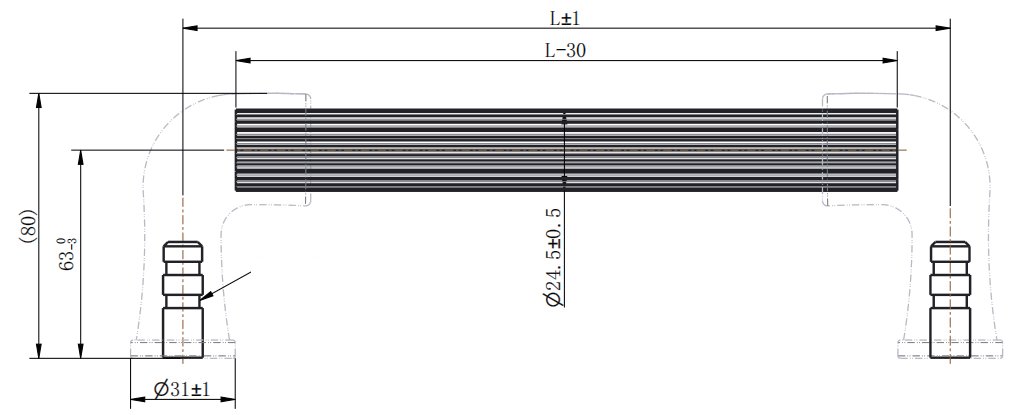

Dimension Drawing
FAQ
Q: What lengths does the LS513-3 come in?
A: 320, 370, 470, 570, 670 and 770 mm.
Q: What is the copper insert for?
A: The M8 copper insert gives a strong, thread-stable fixing for the mounting screws.
Q: What is the grip made of?
A: A rubber sleeve over a steel pipe.
Q: Where is it used?
A: Wide industrial enclosures, telecom cabinets and data center cabinets.
