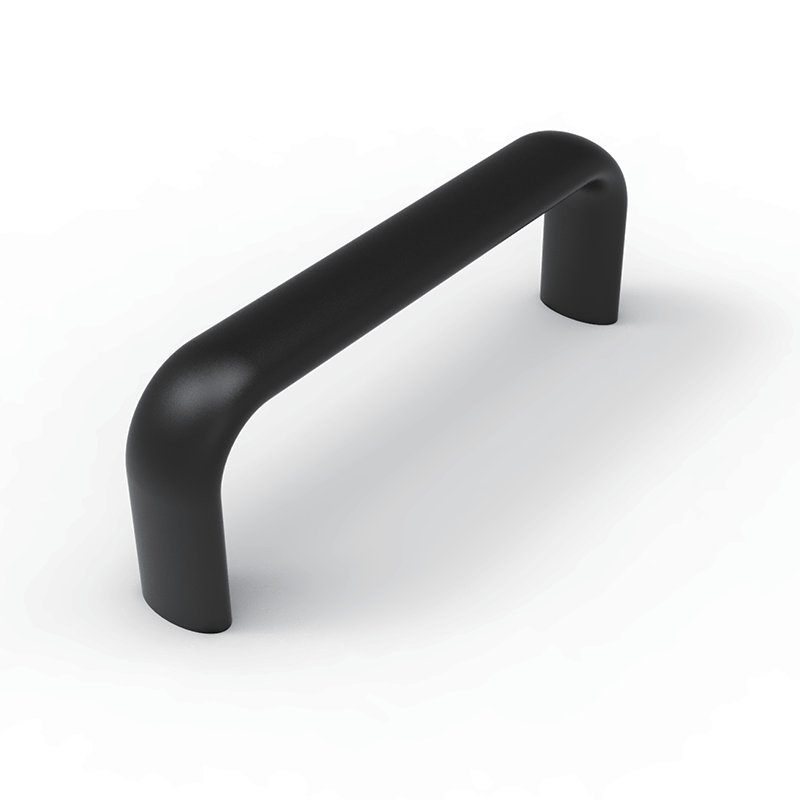

The LS516 aluminum cabinet handle is machined from aluminium alloy and finished in black powder coat, giving a light, corrosion-resistant pull for industrial cabinet and enclosure doors.
It is supplied in five lengths — 75, 100, 125, 150 and 175 mm — and mounts on the door face with screws.
Typical applications include industrial enclosures, telecom cabinets, control panels and machinery doors. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS516-75 ~ -175 | aluminum cabinet handle, 5 lengths | Aluminium alloy | Powder coat (black) |

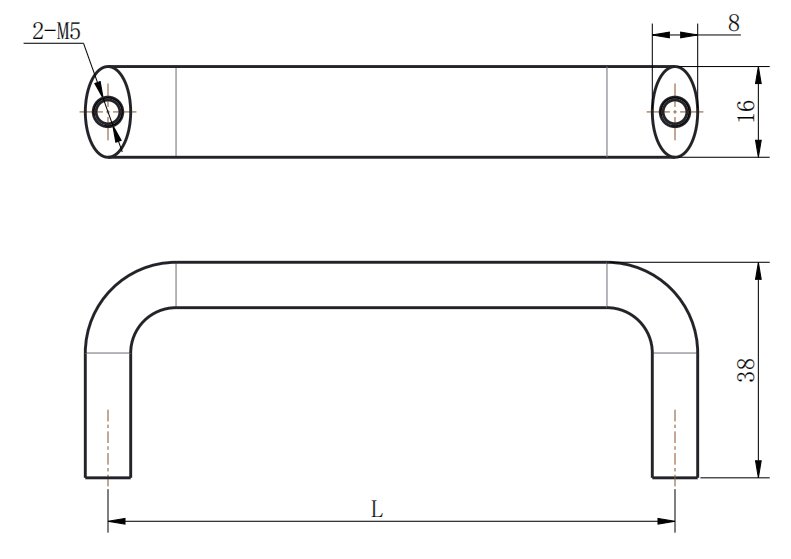

Dimension Drawing
FAQ
Q: What lengths does the LS516 come in?
A: 75, 100, 125, 150 and 175 mm.
Q: Why aluminium?
A: It is light and corrosion-resistant, ideal where weight matters.
Q: What is the finish?
A: Black powder coat.
Q: Does it need a cut-out?
A: No, it is surface-mounted.
