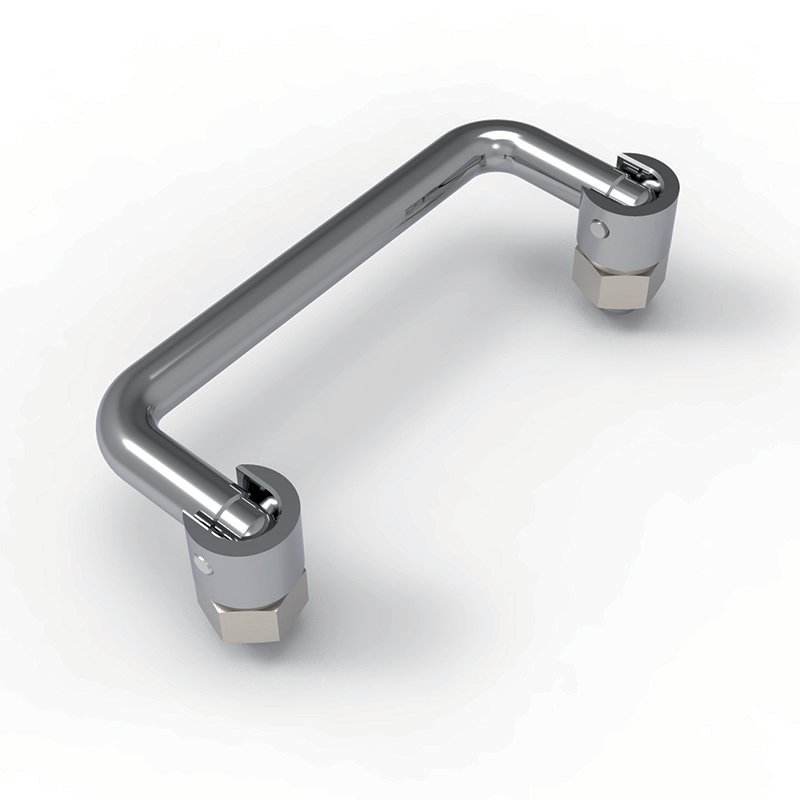

The LS506 cabinet door handle is a surface-mount pull in bright chrome plated steel or polished SUS304 stainless steel, offered in seven lengths — 90, 100, 120, 135, 150, 155 and 160 mm.
The “S” part numbers (LS506-Sxx) are the SUS304 versions for corrosion resistance. All lengths mount with screws and need no cut-out.
Typical applications include industrial enclosures, telecom cabinets, control panels and machinery doors. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS506-90 ~ -160 | cabinet door handle, 7 lengths | Steel | Bright chrome plated |
| LS506-S90 ~ -S160 | cabinet door handle, stainless steel | SUS304 | Polished |

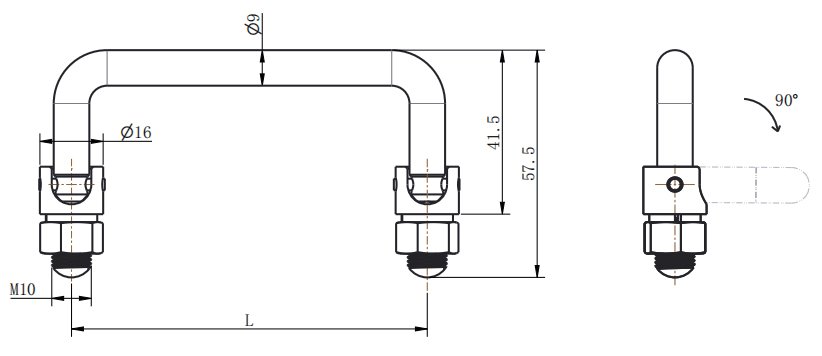

Dimension Drawing
FAQ
Q: What lengths does the LS506 come in?
A: 90, 100, 120, 135, 150, 155 and 160 mm.
Q: What is the difference between LS506 and LS506-S?
A: The “S” part numbers are SUS304 stainless steel; the plain numbers are bright chrome plated steel.
Q: Does it need a cut-out?
A: No, it is surface-mounted.
Q: Where is it used?
A: Industrial enclosures, telecom cabinets, control panels and machinery doors.
