The LS508 steel cabinet handle is a surface-mount pull in bright chrome plated steel or polished SUS304 stainless steel, supplied in five lengths — 60, 70, 90, 120 and 135 mm.
The “S” part numbers (LS508-Sxx) are the SUS304 versions for damp or outdoor use. All lengths mount with screws and need no cut-out.
Typical applications include industrial enclosures, telecom cabinets, control panels and machinery doors. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS508-60 ~ -135 | steel cabinet handle, 5 lengths | Steel | Bright chrome plated |
| LS508-S60 ~ -S135 | steel cabinet handle, stainless steel | SUS304 | Polished |

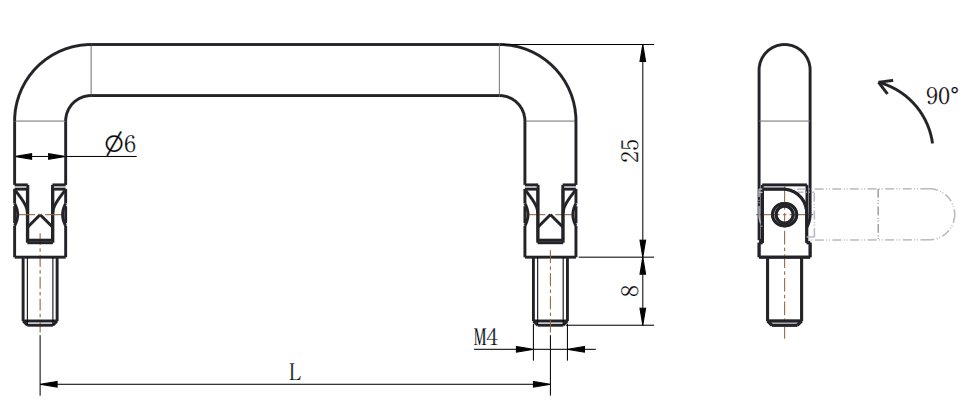

Dimension Drawing
FAQ
Q: What lengths does the LS508 come in?
A: 60, 70, 90, 120 and 135 mm.
Q: What is the difference between LS508 and LS508-S?
A: The “S” part numbers are SUS304 stainless steel; the plain numbers are bright chrome plated steel.
Q: Does it need a cut-out?
A: No, it is surface-mounted.
Q: Where is it used?
A: Industrial enclosures, telecom cabinets and control panels.
