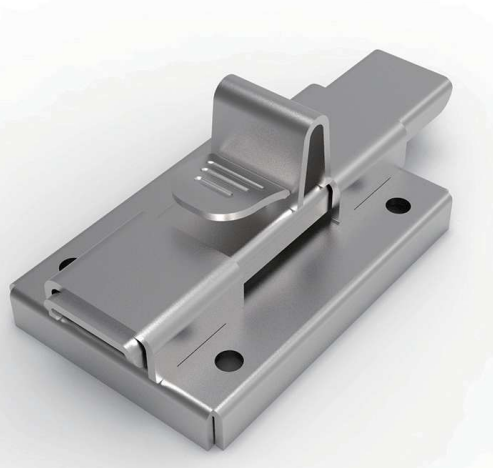

DK610-1 SUS304 Sliding Latch | Stainless Steel Push Button Slide Bolt with Grinding Finish
DK610-1 SUS304 Sliding Latch | Stainless Steel Push Button Slide Bolt with Grinding Finish - Image 2

DK610-1 SUS304 Sliding Latch | Stainless Steel Push Button Slide Bolt with Grinding Finish

Premium SUS304 stainless steel sliding latch with a grinding finish and push-button release mechanism. Features a 14.5mm sliding stroke and 4-Ø4.3mm mounting holes. Designed for secure, anti-vibration locking on industrial enclosures, medical equipment, and marine cabinets.

加入心愿单
Category: Tags: , , , , , , , , , , , , , , , , ,

Product Overview:
The DK610-1 SUS304 Sliding Latch is a premium, heavy-duty slide bolt engineered for secure and vibration-resistant locking. Crafted entirely from high-grade SUS304 stainless steel and finished with a smooth grinding process, this latch features a unique push-button release mechanism. Measuring 85.5mm in length and 44mm in width, the DK610-1 SUS304 Sliding Latch offers a robust sliding stroke of 14.5mm, ensuring a tight and secure seal for industrial cabinets, medical equipment, and marine hardware.

Why Choose SUS304 Stainless Steel and Grinding Finish?
SUS304 (AISI 304) is the industry benchmark for corrosion resistance. By choosing the DK610-1 SUS304 Sliding Latch, you are investing in hardware that will never rust, even in highly humid, saltwater, or chemical environments. The grinding finish not only provides a clean, professional aesthetic but also removes surface imperfections, ensuring a smooth, burr-free operation that is easy to clean and ideal for sterile environments like medical labs and food processing plants.

Push-Button Sliding Mechanism:
Unlike traditional slide bolts that can easily slide open under heavy vibration, the DK610-1 features a spring-loaded push button. The latch remains securely locked in place until the button is intentionally pressed, preventing accidental opening during transit or machine operation. The 14.5mm sliding stroke provides ample engagement depth for a secure hold.

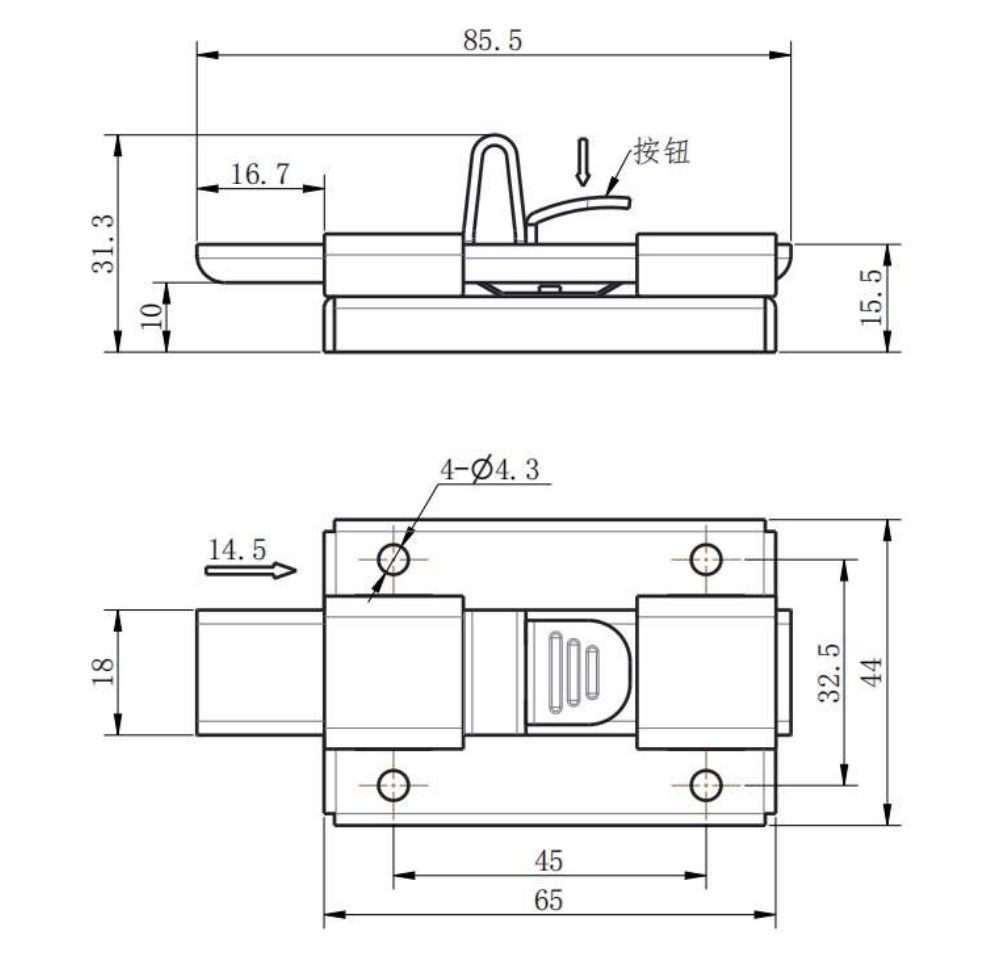

Technical Specifications:

  • Material: SUS304 Stainless Steel

  • Finish: Grinding (Polished/Brushed)

  • Overall Length: 85.5 mm

  • Overall Width: 44 mm (Base width: 32.5 mm)

  • Overall Height: 15.5 mm (Max height with button: 31.3 mm)

  • Sliding Stroke: 14.5 mm

  • Mounting Holes: 4-Ø4.3 mm

  • Mounting Hole Spacing: 45 mm / 65 mm (Length), 18 mm (Width)

Key Features & Benefits:

  • 100% SUS304 Construction: Fully stainless steel body, button, and internal spring guarantee lifetime rust-proof performance.

  • Push-Button Safety: Prevents accidental unlatching due to vibration, impact, or gravity.

  • Smooth Grinding Finish: Burr-free surface ensures safe handling and a sleek, industrial appearance.

  • Precision Mounting: 4 x Ø4.3mm mounting holes provide a stable, secure installation on flat surfaces.

  • Compact & Low Profile: The 15.5mm base height makes it ideal for tight spaces where standard bolts would protrude.

Application Guide:
The DK610-1 SUS304 Sliding Latch is the definitive choice for:

  • Industrial Control Cabinets: Secure electrical panels and server racks.

  • Medical & Laboratory Equipment: The grinding finish meets strict hygiene standards.

  • Marine & Outdoor Enclosures: Withstands saltwater and harsh weather conditions.

  • Heavy Machinery: Engine covers, access doors, and vibrating panels.

  • Transportation: Truck toolboxes, RV compartments, and train interiors.

Installation and Maintenance:
Installation is straightforward: mount the latch base using the 4 x Ø4.3mm holes. Ensure the receiving hole is aligned with the 14.5mm sliding bolt. Press the button to retract the bolt, align the door, and release the button to lock. The SUS304 material requires no lubrication. A simple wipe with a damp cloth restores its shine.

Frequently Asked Questions (FAQ):

  • Q: How does the push-button mechanism work?
    A: The spring-loaded button locks the sliding bolt in place. You must press the button to slide the latch open. This prevents the latch from opening accidentally due to vibration.

  • Q: Is this latch suitable for outdoor use?
    A: Yes, absolutely. The SUS304 stainless steel construction provides excellent resistance to rain, saltwater, and UV exposure.

  • Q: What is the sliding distance?
    A: The DK610-1 offers a 14.5mm sliding stroke, providing sufficient engagement for a secure lock.

Conclusion:
When your project demands a reliable, rust-proof, and vibration-resistant sliding latch, the DK610-1 SUS304 Sliding Latch delivers uncompromising quality. Upgrade your industrial, marine, or medical hardware with this premium stainless steel latch today.
