DK614-1 SUS316 Toggle Latch | Heavy Duty Stainless Steel Adjustable Quick Release Clamp with Red Grip
Premium SUS316 stainless steel toggle latch with a grinding finish. Features an adjustable threaded rod (75.5-83mm), 5-Ø5.4mm countersunk holes, and an ergonomic red rubber grip. Ideally suited for marine, chemical, and food processing environments.
Product Overview:

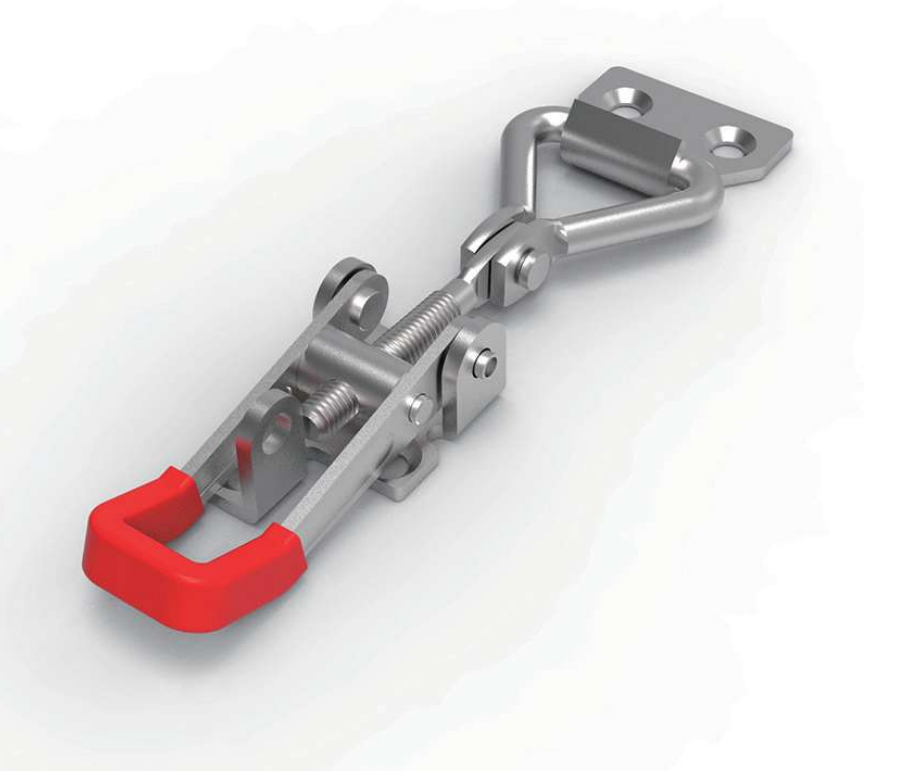

The DK614-1 SUS316 Toggle Latch is a premium, heavy-duty fastening solution engineered for the most demanding environments. Crafted from high-grade SUS316 stainless steel and finished with a smooth grinding process, this adjustable latch features a U-shaped bracket, a threaded adjustment rod, and an ergonomic red rubber grip. Whether you are securing marine hatches, chemical enclosures, or food processing equipment, the DK614-1 SUS316 Toggle Latch delivers superior corrosion resistance and reliable holding power.
Why Choose SUS316 Stainless Steel?
While SUS304 is excellent for general use, SUS316 is the gold standard for harsh environments. It contains molybdenum, which significantly increases its resistance to pitting and crevice corrosion, particularly against chlorides and saltwater. By choosing the DK614-1 SUS316 Toggle Latch, you are investing in hardware that will withstand extreme chemical exposure, marine atmospheres, and rigorous washdowns without rusting or degrading.

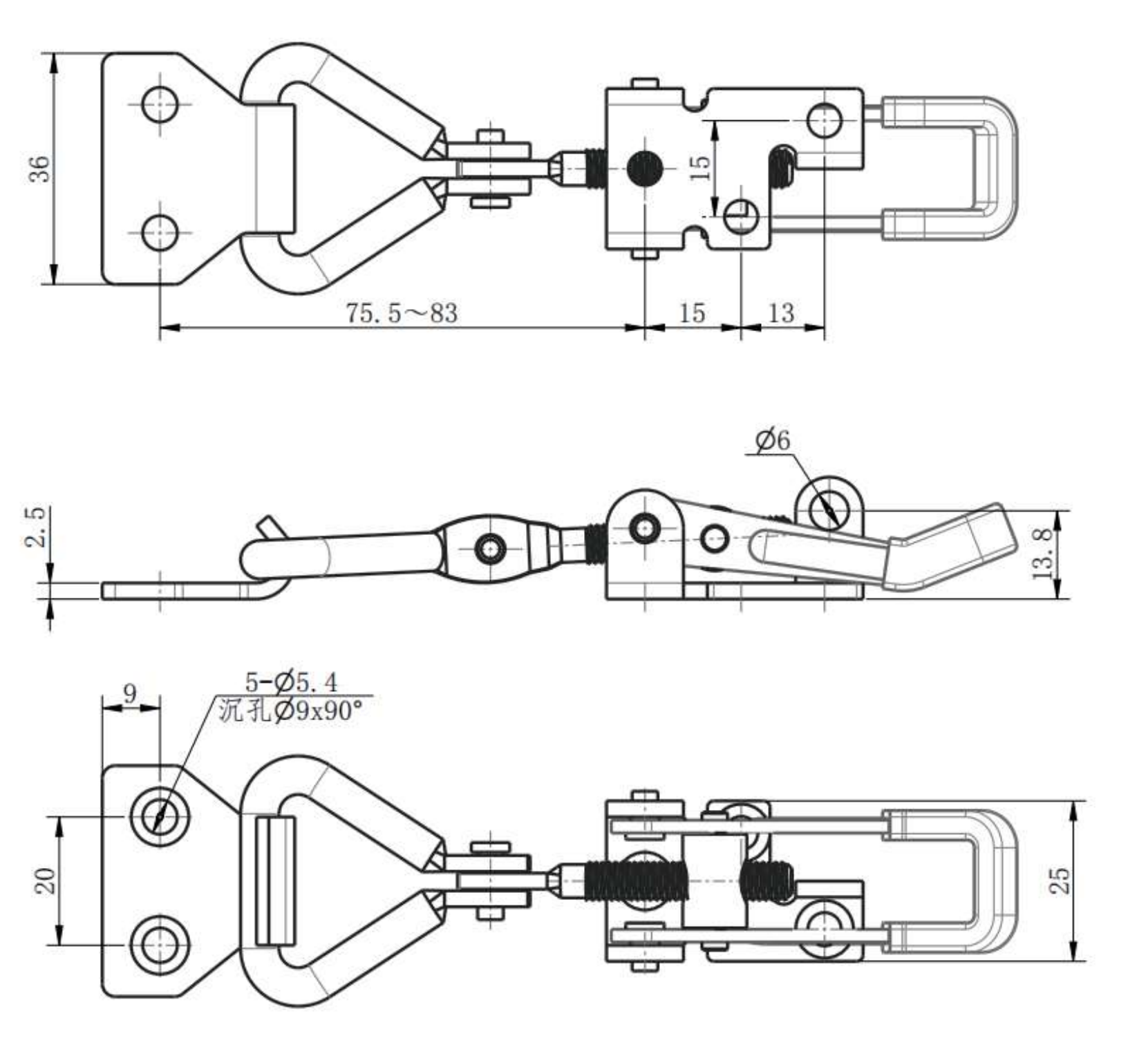

Technical Specifications:
-
Material: SUS316 Stainless Steel
-
Finish: Grinding (Polished/Brushed)
-
Adjustable Length: 75.5 ~ 83 mm
-
Mounting Base Width: 36 mm
-
Base Thickness: 2.5 mm
-
Locking Height: 13.8 mm
-
Mounting Holes: 5-Ø5.4 mm (Countersunk Ø9×90°)
-
Mounting Hole Spacing: 20 mm (Width) / 9 mm (Edge)
Key Features & Benefits:
-
Premium SUS316 Construction: Unmatched resistance to saltwater, chemicals, and extreme temperatures.
-
Precision Countersunk Holes: The 5-Ø5.4mm holes with Ø9×90° countersinks allow for flush-mount installation using flat-head screws, preventing protrusions that could snag or cause injury.
-
Adjustable Tension: The threaded rod (75.5-83mm) allows you to fine-tune the clamping pressure for a tight, rattle-free seal over time.
-
Ergonomic Red Rubber Grip: The bright red, non-slip handle provides excellent leverage and comfort, making it easy to operate even with wet or greasy hands.
-
Vibration-Resistant Locking: The over-center locking mechanism ensures the latch stays securely closed under heavy vibration.
Application Guide:
The DK614-1 SUS316 Toggle Latch is the definitive choice for:
-
Marine & Offshore Equipment: Boat hatches, yacht compartments, and dock hardware.
-
Chemical & Pharmaceutical Enclosures: Resistant to harsh cleaning agents and corrosive vapors.
-
Food Processing Machinery: The grinding finish and SUS316 material meet strict hygiene standards.
-
Heavy Vehicles & Transportation: Truck toolboxes, RV compartments, and engine covers.
-
Industrial Cabinets: Secure electrical panels and server racks in humid environments.
Installation and Maintenance:
Installation is straightforward: mount the base using the 5 x Ø5.4mm countersunk holes and appropriate flat-head bolts. Adjust the threaded rod to achieve the desired tension, then snap the latch closed. The SUS316 material requires no lubrication and is incredibly easy to clean. A simple wipe with a damp cloth restores its shine. Regular inspection of the mounting bolts is recommended for high-vibration applications.
Frequently Asked Questions (FAQ):
-
Q: What is the difference between SUS316 and SUS304?
A: SUS316 contains molybdenum, giving it superior resistance to corrosion from chlorides and chemicals. It is the preferred choice for marine and chemical applications. -
Q: What is the purpose of the countersunk holes?
A: The Ø9×90° countersinks allow the mounting bolts to sit flush with the base surface, providing a clean, snag-free installation. -
Q: Can I adjust the tightness of the latch?
A: Yes, the threaded rod allows you to adjust the length between 75.5mm and 83mm to ensure a perfect, snug fit.
Conclusion:
When your project demands a reliable, rust-proof, and heavy-duty latch in a corrosive environment, the DK614-1 SUS316 Toggle Latch is the ultimate solution. Upgrade your marine, chemical, or industrial hardware with this premium stainless steel latch today.
