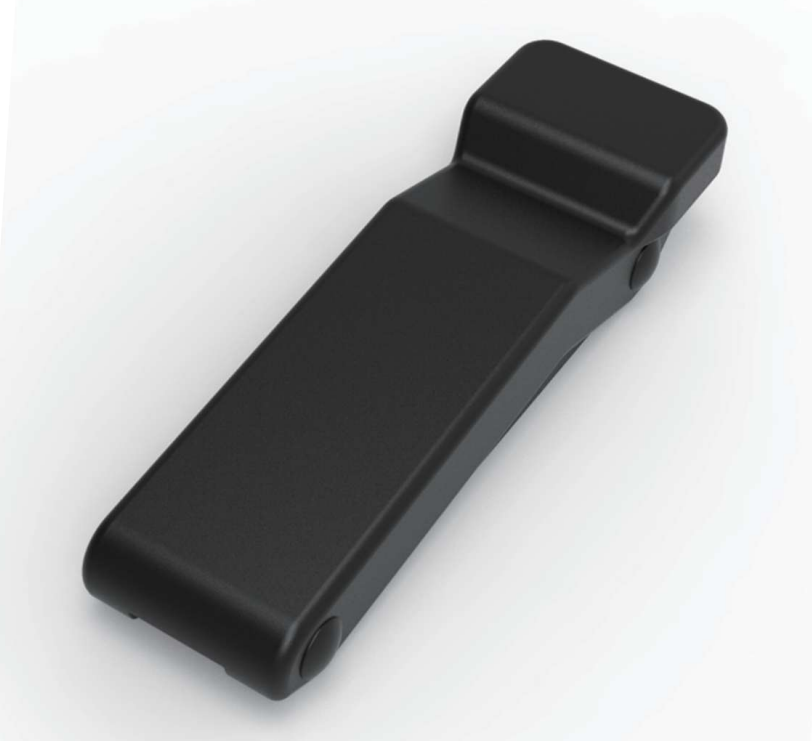

DK609-1A & DK609-1AG TPR Toggle Latch 106mm Black Rubber Body with SUS304 Stainless Steel Bracket & Catcher
DK609-1A & DK609-1AG TPR Toggle Latch 106mm Black Rubber Body with SUS304 Stainless Steel Bracket & Catcher - Image 2
DK609-1A & DK609-1AG TPR Toggle Latch 106mm Black Rubber Body with SUS304 Stainless Steel Bracket & Catcher - Image 3

DK609-1A & DK609-1AG TPR Toggle Latch 106mm Black Rubber Body with SUS304 Stainless Steel Bracket & Catcher

Ergonomic 106mm toggle latch featuring a durable TPR black body and SUS304 stainless steel catcher and bracket. Designed with 4-Ø4.5mm mounting holes. Available in DK609-1A (standard) and DK609-1AG (with additional Ø9mm locking post). Ideal for industrial enclosures, automotive, and marine applications.

加入心愿单
Category: Tags: , , , , , , , , , , , , , , , , , , , ,

Product Overview:
The DK609-1A TPR Toggle Latch is a high-performance, extended-length fastening solution that combines the comfort of a thermoplastic rubber (TPR) body with the rugged durability of SUS304 stainless steel hardware. Measuring 106mm in total length, this series is specifically designed for applications requiring a longer reach or greater leverage than standard latches. The DK609 series offers two distinct models: the standard DK609-1A and the DK609-1AG, which features an additional Ø9mm bracket post for enhanced mounting, locking, or safety pin capabilities.

Why Choose TPR and SUS304 Stainless Steel?
Unlike traditional all-metal latches that can become slippery, freezing, or bulky, the DK609-1A TPR Toggle Latch utilizes a high-quality TPR over-mold. TPR (Thermoplastic Rubber) is known for its excellent grip, weather resistance, and shock-absorbing properties. This makes the handle comfortable to operate even in wet or cold conditions, and prevents the latch from scratching delicate surfaces. Complementing the rubber body is the SUS304 stainless steel catcher and bracket. This high-grade stainless steel guarantees exceptional resistance to rust, corrosion, and extreme temperatures, ensuring the latch operates flawlessly for years.

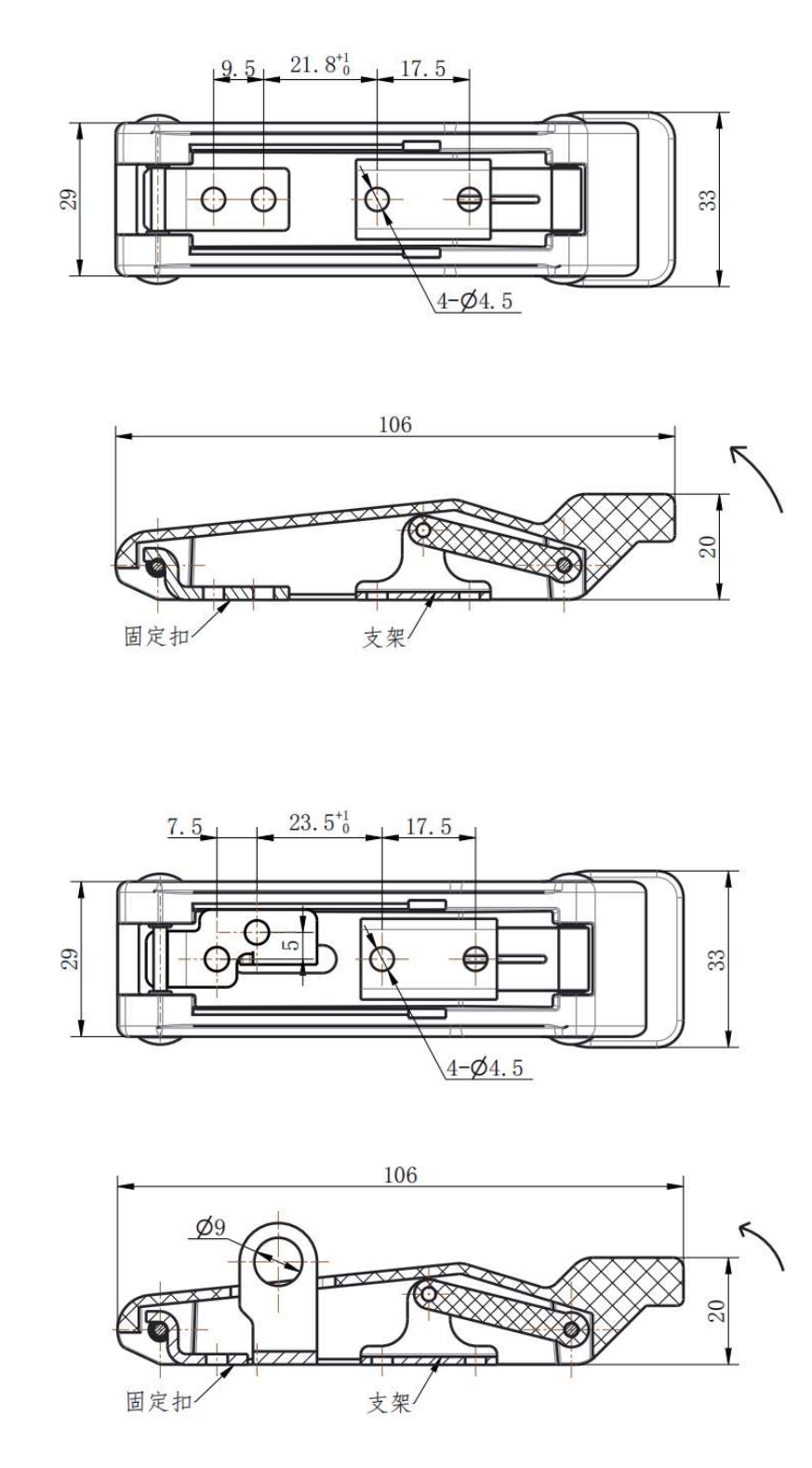

Available Models & Dimensions:

  1. DK609-1A TPR Toggle Latch (Standard)

    • Total Length: 106 mm

    • Total Width: 33 mm (Inner base width: 29 mm)

    • Height: 20 mm

    • Mounting Holes: 4-Ø4.5 mm

    • Mounting Hole Spacing: 9.5 mm / 21.8(+1/0) mm / 17.5 mm

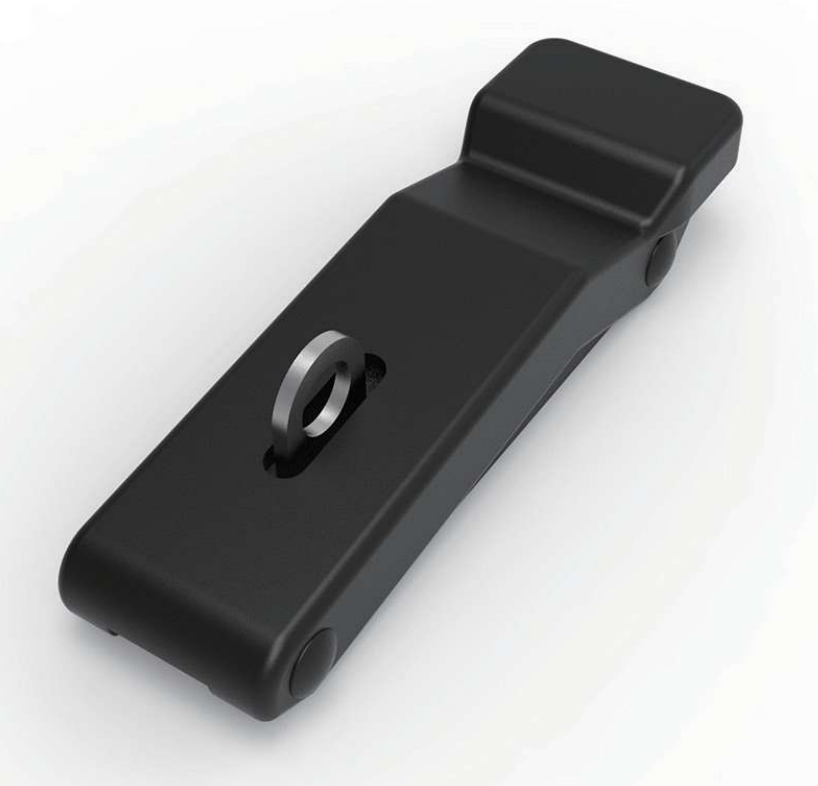

  2. DK609-1AG TPR Toggle Latch (With Bracket Post)

    • Includes an additional Ø9 mm hole on the stainless steel bracket, ideal for a safety pin, padlock, or secondary fixing point.

    • Mounting Hole Spacing: 7.5 mm / 23.5(+1/0) mm / 17.5 mm

Key Features & Benefits:

  • Hybrid Construction: The TPR body provides a non-slip, ergonomic grip, while the SUS304 stainless steel base ensures structural integrity and rust-proof performance.

  • Extended 106mm Reach: The longer body design offers better leverage for tighter seals and accommodates applications where standard 96.5mm latches are too short.

  • High Vibration Resistance: The snap-on design securely locks over the stainless steel catcher, preventing accidental opening during transit or machine operation.

  • DK609-1AG Enhanced Security: The added vertical post on the DK609-1AG model allows users to secure the latch further with a padlock or wire seal, making it perfect for security-sensitive enclosures.

Application Guide:
The DK609-1A TPR Toggle Latch is the definitive choice for:

  • Industrial Cabinets & Electrical Enclosures: Secure control panels and server racks.

  • Automotive & Transportation: Ideal for truck toolboxes, RV compartments, and engine covers due to its vibration-dampening TPR body.

  • Marine & Outdoor Equipment: The SUS304 components resist saltwater and harsh weather, while the TPR handle remains comfortable to touch in cold marine environments.

  • Medical & Testing Equipment: The non-scratch TPR material protects sensitive equipment surfaces.

Installation and Maintenance:
Installation is straightforward: mount the TPR base using the 4 x Ø4.5mm holes, align the stainless steel bracket and catcher, and snap the latch closed. The TPR material requires no lubrication and is incredibly easy to clean. A simple wipe with a damp cloth keeps the product looking brand new. For the DK609-1AG, simply insert a padlock through the Ø9mm hole to lock the latch in place.

Frequently Asked Questions (FAQ):

  • Q: What is the difference between DK609-1A and DK609-1AG?
    A: The DK609-1AG features an additional Ø9mm vertical post on the bracket. This post can be used for a padlock to secure the latch, or as an additional mounting point.

  • Q: Is the TPR material UV resistant?
    A: Yes, the high-quality TPR black body is UV stabilized, making it suitable for outdoor applications without cracking or fading.

  • Q: What is the length of the DK609-1A compared to the DK609-1?
    A: The DK609-1A is 106mm long, while the standard DK609-1 is 96.5mm. This makes the DK609-1A ideal for applications requiring a longer reach.

Conclusion:
When you need a latch that is easy to grip, gentle on surfaces, and tough enough for industrial use, the DK609-1A TPR Toggle Latch is the perfect solution. Choose the DK609-1AG for added security. Upgrade your equipment hardware today with this premium hybrid latch.
