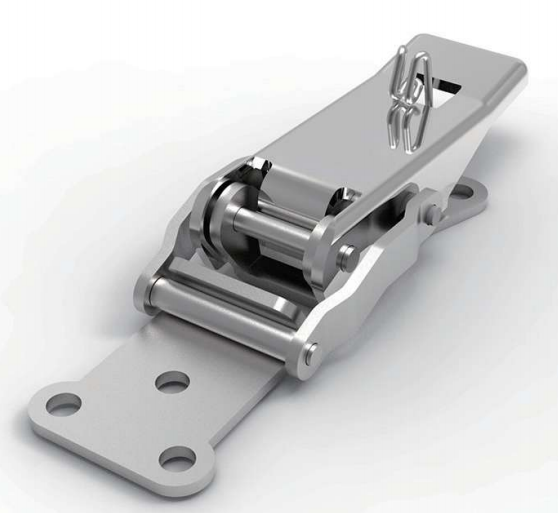

DK605-1 SUS304 Stainless Steel Toggle Latch | Mirror Polished Heavy Duty Draw Latch with Safety Catch
Premium SUS304 stainless steel toggle latch with a mirror polished finish. Features a built-in safety catch to prevent accidental release under vibration. Adjustable length (42-45mm) and 6-Ø5.1 mounting holes. Ideal for industrial cabinets, marine hardware, and heavy machinery.
Product Overview:
The DK605-1 SUS304 Toggle Latch is a high-performance, heavy-duty locking solution engineered for applications where security and durability are paramount. Crafted entirely from premium SUS304 stainless steel and finished with a stunning mirror polish, this adjustable draw latch is designed to withstand the harshest environments. What sets the DK605-1 apart is its integrated safety catch (防松扣) mechanism, ensuring the latch remains securely locked even in high-vibration environments.
Why Choose SUS304 Stainless Steel and Mirror Polishing?
SUS304 (AISI 304) is renowned for its exceptional corrosion resistance, making the DK605-1 SUS304 Toggle Latch perfectly suited for marine, chemical, and outdoor applications. The mirror polishing finish not only provides a sleek, professional, and aesthetically pleasing appearance but also eliminates surface imperfections where dirt and moisture could accumulate, making it ideal for food machinery, medical cabins, and cleanroom environments.
Key Features & Advantages:
-
Integrated Safety Catch (防松扣): A critical feature for heavy machinery and transportation. This secondary locking mechanism prevents the latch from popping open due to vibration, impact, or accidental bumps, ensuring your equipment stays secure at all times.
-
Fully Adjustable Tension: The latch features an adjustable rod mechanism with a working range of 42mm to 45mm. This allows for precise tension tuning to ensure a tight, rattle-free seal over time.
-
Premium Stainless Steel Construction: Made of 100% SUS304, this latch offers superior strength and will never rust, even in saltwater or highly humid environments.
-
Mirror Polished Finish: Offers an attractive, high-end shine while providing an extra layer of surface protection against oxidation.

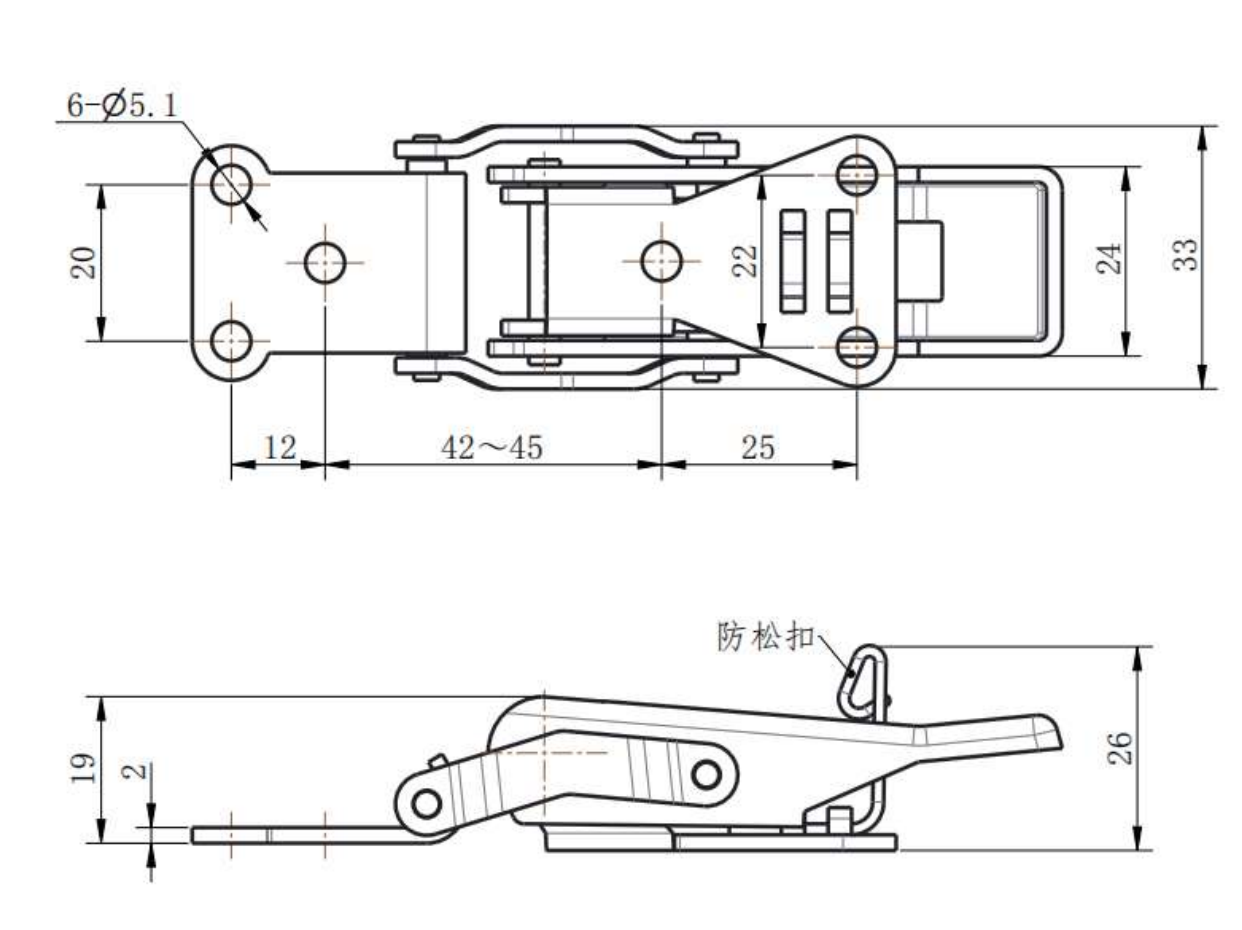

Technical Specifications:
-
Material: SUS304 Stainless Steel
-
Finish: Mirror Polishing
-
Adjustable Length: 42~45 mm
-
Mounting Hole Diameter: 6-Ø5.1 mm
-
Base Dimensions: Width 20mm; Overall max width 33mm
-
Mounting Hole Spacing: 12 mm (Base), 25 mm (Top), 42~45 mm (Adjustable)
-
Overall Height: 19 mm to 26 mm (depending on engagement)
Application Guide:
The DK605-1 SUS304 Toggle Latch is the definitive choice for:
-
Industrial Cabinets & Enclosures: Securing electrical panels, control boxes, and server racks.
-
Marine & Vehicle Hardware: Ideal for boat hatches, RV compartments, and truck toolboxes due to its rust-proof properties and vibration-resistant safety catch.
-
Heavy Machinery: Cover panels, engine hoods, and maintenance access doors.
-
Food & Medical Equipment: The polished surface meets strict hygiene standards.
Installation and Maintenance:
Installation is straightforward using the 6 x Ø5.1mm mounting holes. To install, simply mount the base plate, engage the latch hook, and adjust the rod to achieve your desired clamping pressure. Thanks to the SUS304 material and mirror finish, maintenance is virtually non-existent. A simple wipe with a damp cloth is usually sufficient to restore its shine.
Frequently Asked Questions (FAQ):
-
Q: What is the purpose of the safety catch (防松扣)?
A: It acts as a secondary lock. Once the main handle is engaged, the safety catch can be flipped over to prevent the handle from lifting up, which is crucial for equipment subjected to strong vibrations. -
Q: Is this latch suitable for outdoor use?
A: Yes, absolutely. The SUS304 stainless steel construction provides excellent resistance to rain, saltwater, and UV exposure. -
Q: Can I adjust the tightness of the latch?
A: Yes, the threaded rod allows you to adjust the length between 42mm and 45mm to ensure a perfect, snug fit.
Conclusion:
When your project demands a reliable, rust-proof, and vibration-resistant fastening solution, the DK605-1 SUS304 Toggle Latch delivers uncompromising quality. Upgrade your industrial, marine, or automotive hardware with this premium stainless steel latch today.
