DK602 Concealed Toggle Latch

1. Product Overview

The DK602 Series Concealed Toggle Latch is a heavy-duty hidden draw latch widely used for industrial cabinets, machinery enclosures, electrical boxes and equipment protective covers. As one of the core models in our Toggle and Hook Series, this concealed toggle latch adopts a fully hidden installation structure, providing a flat and clean cabinet appearance while delivering stable clamping performance. Available in three practical variants, the DK602 latch covers standard closing, anti-vibration locking and security padlock locking scenarios, making it one of the most versatile stainless steel cabinet latches for industrial enclosure solutions.

Ideal for outdoor telecom cabinets and BESS enclosures in European and North American projects.

2. Product Specifications

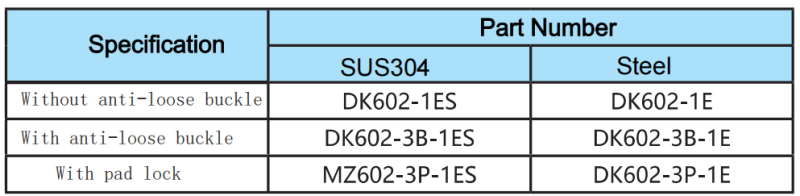

Product Series: DK602 Concealed Toggle Latch Model Options: DK602-1ES (Standard), DK602-3B-1ES (With Anti-loose Buckle), DK602-3P-1ES (With Padlock Eye) Material: SUS304 Electropolished Stainless Steel Adjustable Stroke: 65mm–83mm Mounting Hole Size: 4-Φ4.4mm Structure Type: Concealed / Hidden Mount / Flush Type Application: Industrial Cabinets, Machinery Enclosures, Electrical Boxes, Tool Cases

Manufactured in-house at our Shengzhou factory under ISO 9001 quality control.

3. Key Features of DK602 Concealed Toggle Latch

3.1 Concealed Flush Mount Design

Different from traditional exposed latches, the DK602 concealed toggle latch is completely hidden after installation. No protruding parts on the cabinet surface, effectively avoiding collision interference and dust accumulation. This flush design is highly popular for high-end automation equipment, outdoor cabinets and precision instrument enclosures.

3.2 Adjustable Clamping Stroke & Tight Closure

Equipped with an adjustable screw mechanism, this stainless steel draw latch supports 65mm to 83mm draw stroke adjustment. It can compensate for panel assembly errors, ensure tight door closure, improve cabinet sealing performance, and reduce vibration noise during equipment operation. It is a reliable adjustable industrial cabinet latch for diverse panel thicknesses.

3.3 Three Functional Variants for All Working Conditions

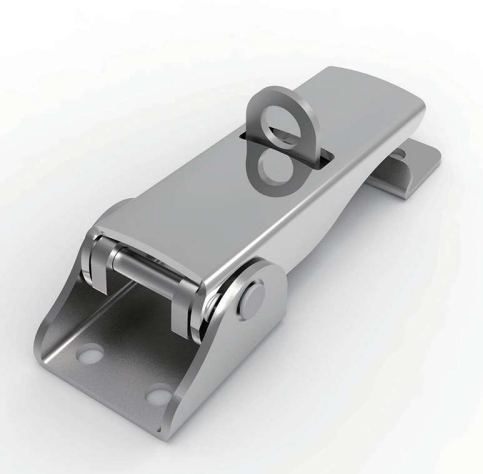

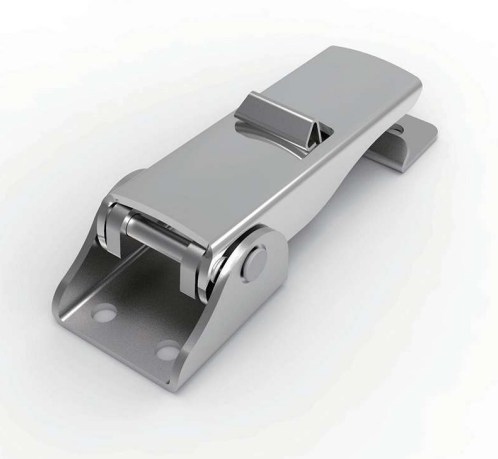

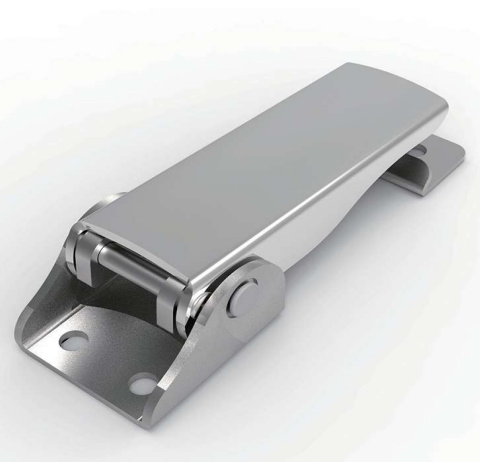

We provide three professional versions to meet different industrial needs: DK602-1ES: Standard concealed toggle latch for general indoor cabinets and static equipment, cost-effective and durable. DK602-3B-1ES: Equipped with anti-loose buckle, effectively prevents accidental popping open under continuous vibration, ideal for mobile machinery, vehicle-mounted enclosures and vibrating production equipment. DK602-3P-1ES: Designed with padlock eye structure, allowing users to install padlocks for physical anti-theft and safety locking, perfect for public equipment boxes and safety-critical enclosures.

Learn how to select the right concealed latch for vibration-prone enclosures in our application guide.

FAQ

Q: What is the DK602 used for?
A: Industrial Cabinets, Machinery Enclosures, Electrical Boxes, Tool Cases.

Q: What material is the DK602 made of?
A: SUS304 Electropolished Stainless Steel.

Q: Is the DK602 suitable for industrial cabinets and enclosures?
A: Yes, it is designed for industrial cabinets, electrical enclosures, control boxes and equipment doors.

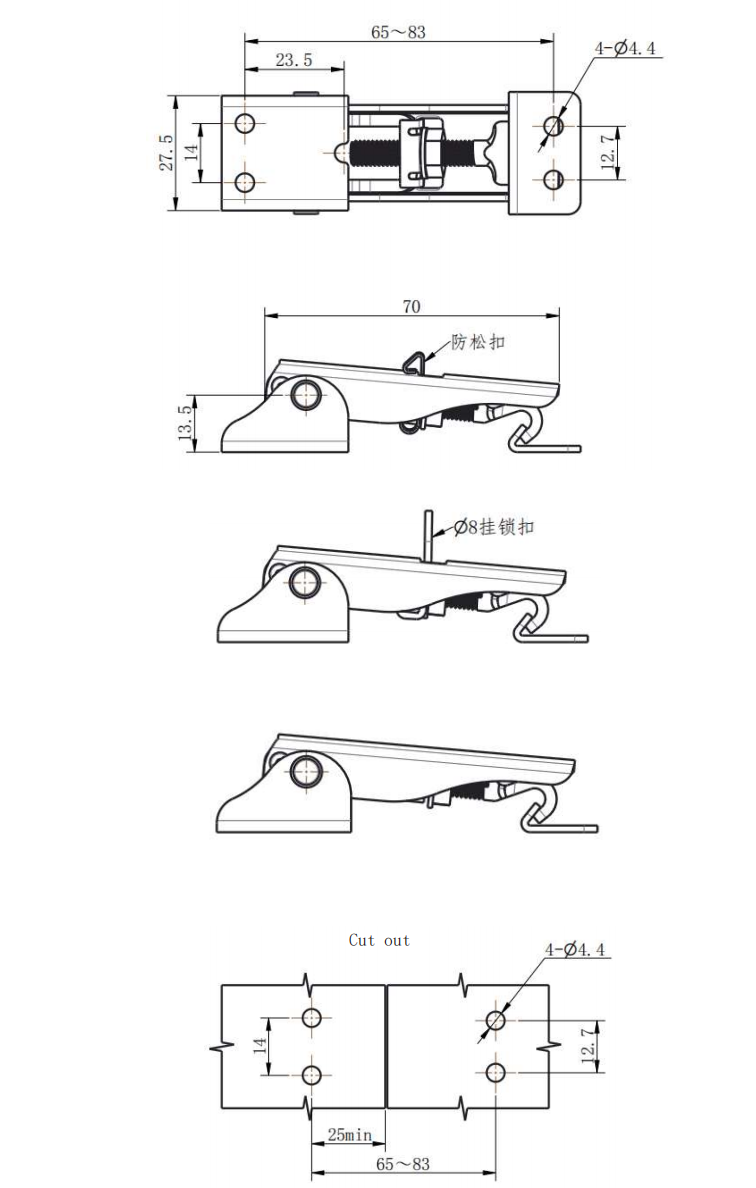

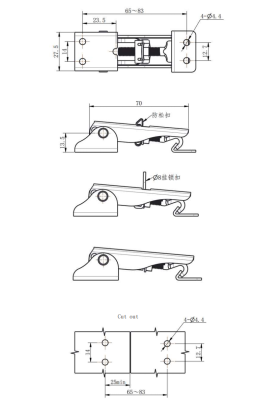

Q: Does the DK602 come with dimension and cut-out drawings?
A: Yes — the dimension and cut-out drawings are shown on this page; contact us if you need a CAD file.

Q: Does Reaking offer OEM or custom toggle or slide latch?
A: Yes, Reaking welcomes OEM and custom orders — contact us with your drawing or sample requirements.
