MZ314-1 Series 60mm Zinc Alloy Bright Chrome Plated IP65 Quarter-Turn T-Handle Industrial Cabinet Lock

Full Technical Specifications

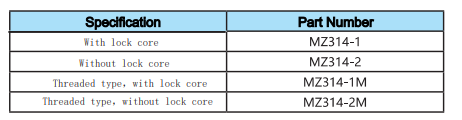

• Model Variants:

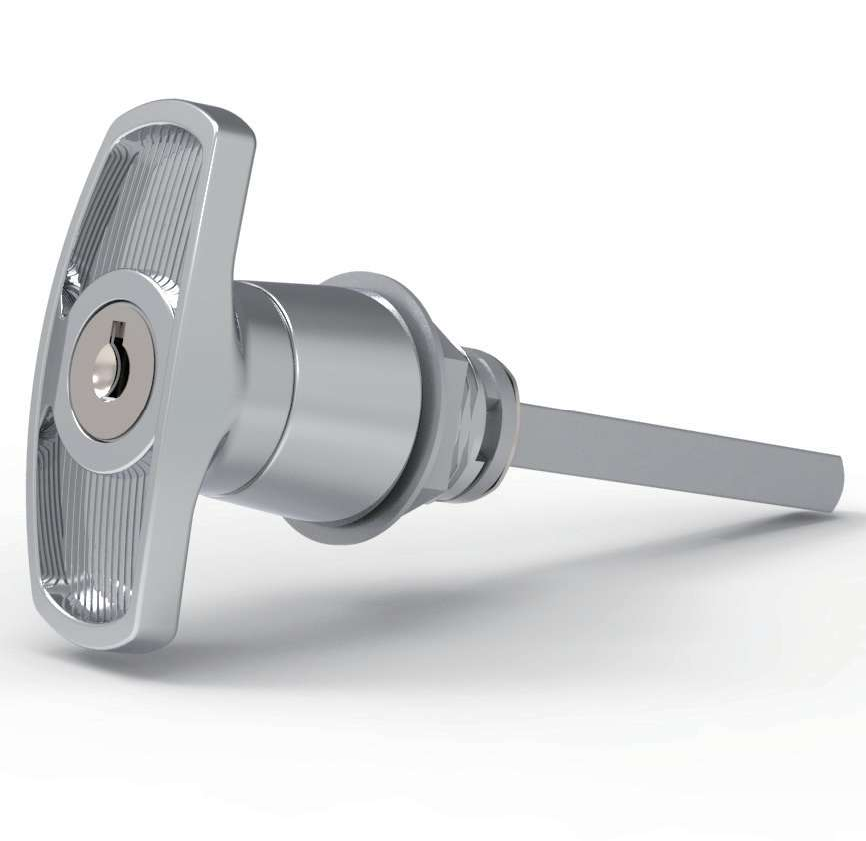

  • MZ314-1: With lock core, C8 smooth shaft (8mm with flat)

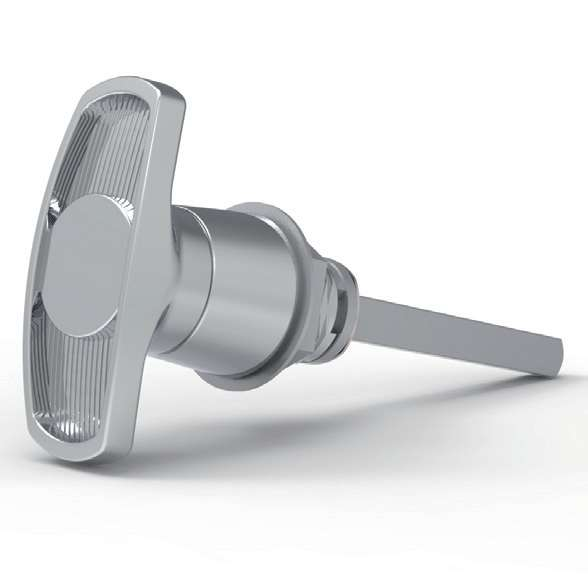

  • MZ314-2: Without lock core, C8 smooth shaft

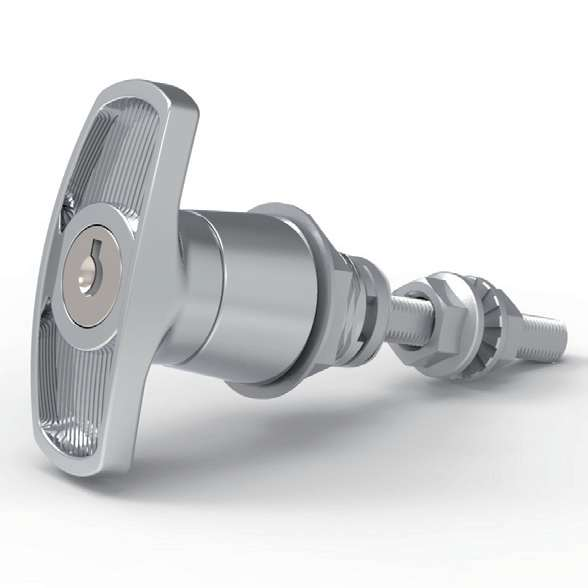

  • MZ314-1M: With lock core, M10 threaded shaft
  • MZ314-2M: Without lock core, M10 threaded shaft
• Housing and Handle Material: Zinc alloy
• Shaft and Nut Material: Steel
• Surface Finish: Bright chrome plated housing and handle; white zinc plated shaft and nut
• Protection Rating: IP65 (dust-tight, water jet resistant)
• Operation Type: Quarter-turn (90° rotation) opening or closing
• Handle Type: T-handle, 60mm width × 25mm height
• Housing Diameter: Φ28mm (with sealing gasket)
• Shaft Options:
  • C8 smooth shaft: 8mm diameter with flat, 91mm length (customizable), total height 126mm
  • M10 threaded shaft: M10 thread, 73mm length (customizable), total height 108mm
• Mounting Cutout: Square 20.175mm × 20.175mm, with Φ22.5mm clearance
• Mounting Method: Through-panel with nut (Tx threaded section)
• Rotation Angle: 90°
• Lock Core: Integrated on T-handle face (for MZ314-1 and MZ314-1M variants)
• Sealing: Integrated sealing gasket (密封垫) for IP65 protection
• Core Features: Zinc alloy bright chrome construction, IP65 waterproof, T-handle high-torque grip, quarter-turn 90° operation, four variants (lock core × shaft type), C8 smooth or M10 threaded shaft, customizable shaft length, square cutout mounting

Core Product Features & Advantages

1 High-Quality Zinc Alloy Construction with Bright Chrome Plating

The housing and T-handle are manufactured from high-pressure die-cast zinc alloy, providing excellent structural rigidity, impact resistance and dimensional stability. The bright chrome plating creates a highly reflective, premium metallic surface that is highly resistant to scratches, abrasion and corrosion, while providing a clean, professional appearance that elevates the visual quality of any equipment enclosure.

2 Ergonomic 60mm T-Handle for High-Torque Operation

The 60mm wide T-handle design provides an ergonomic, high-torque grip that enables easy quarter-turn operation even when wearing work gloves. The T-bar shape distributes rotational force evenly, reducing operator effort and ensuring consistent latching force for secure door closure. The handle face integrates the lock core (on keyed variants) for a clean, unified appearance.

3 IP65 Waterproof Rating for Indoor and Outdoor Use

The integrated sealing gasket (密封垫) and robust construction achieve IP65 protection rating, ensuring the lock is dust-tight and resistant to water jets from any direction. This makes the lock suitable for both indoor industrial environments and outdoor applications including weather-exposed cabinets, coastal equipment and outdoor monitoring enclosures where dust and moisture protection are critical.

4 Four Functional Variants for Flexible Configuration

The lock is available in four carefully engineered variants combining lock core options and shaft types to suit different security and installation requirements:

• MZ314-1 (With lock core, C8 smooth shaft): Keyed security with standard smooth shaft for cam engagement
• MZ314-2 (Without lock core, C8 smooth shaft): Keyless operation with standard smooth shaft
• MZ314-1M (With lock core, M10 threaded shaft): Keyed security with threaded shaft for adjustable through-panel mounting
• MZ314-2M (Without lock core, M10 threaded shaft): Keyless operation with threaded shaft for adjustable through-panel mounting

This comprehensive variant range ensures optimal lock selection for any project requirement.

5 Customizable Shaft Length for Various Cabinet Depths

Both the C8 smooth shaft (91mm standard) and M10 threaded shaft (73mm standard) support customizable length specifications (可定制规格), allowing the lock to be tailored to specific cabinet door depths and cam configurations. This flexibility ensures proper cam engagement and latching force for a wide range of enclosure designs.

6 Square Cutout Mounting for Rotation-Free Installation

The square cutout mounting (20.175mm × 20.175mm) with Φ22.5mm housing clearance ensures precise, rotation-free panel installation. The square cutout prevents the lock housing from rotating during quarter-turn operation, providing stable, secure mounting on cabinet doors and panels while the through-panel nut provides the primary fixation.

Application Fields

1. Electrical control cabinets, low-voltage distribution boxes, frequency converter enclosures and PLC equipment housings requiring secure T-handle quarter-turn locking
2. CNC machine tool guards, automation equipment protective doors and industrial machinery access panels
3. Server racks, data center enclosures, communication equipment cabinets and IT infrastructure housings
4. Outdoor communication cabinets, energy storage battery boxes and waterproof monitoring equipment enclosures (IP65 rated)
5. Sheet metal tool cabinets, industrial console doors, workbench cabinets and premium storage enclosures
6. Test bench cabinets, laboratory equipment enclosures and environmental monitoring control boxes
7. High-end equipment enclosures, kiosks, point-of-sale systems and display cases requiring secure T-handle locking
8. Aluminum profile industrial frames, mechanical equipment maintenance hatches and test fixtures
9. Outdoor monitoring equipment, weather-resistant instrument panels and coastal equipment enclosures
10. Applications requiring IP65 waterproof protection, T-handle high-torque operation and customizable shaft length

Installation & Maintenance Guidelines

Step-by-Step Installation Procedures

1. Select the appropriate variant based on security and shaft requirements: MZ314-1 (keyed, C8), MZ314-2 (keyless, C8), MZ314-1M (keyed, M10), or MZ314-2M (keyless, M10)

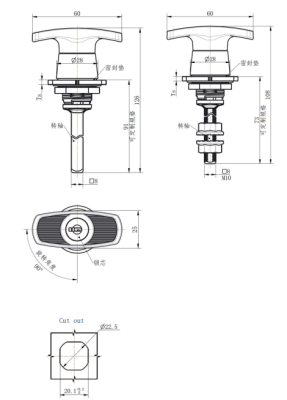

2. Determine the installation position on the cabinet door panel according to the dimension drawing
3. Cut a square mounting hole of 20.175mm × 20.175mm in the cabinet door panel, ensuring clean, straight edges
4. Ensure the sealing gasket (密封垫) is properly positioned on the lock housing flange
5. Insert the shaft through the square cutout from the front of the door panel
6. From the rear of the door panel, install the nut (Tx threaded section) and tighten to secure the lock to the panel
7. For M10 threaded variants (MZ314-1M / MZ314-2M), adjust the nut position to accommodate the specific panel thickness
8. Install the appropriate cam on the C8 or M10 shaft, aligning the flat for positive engagement
9. If customizable shaft length was ordered, verify the shaft length matches the cabinet depth requirement
10. Test the quarter-turn 90° operation to verify smooth locking and unlocking
11. For keyed variants (MZ314-1 / MZ314-1M): Verify the lock core operates correctly with the provided key
12. Adjust the cam position if needed to achieve proper door latching and consistent gap spacing

Installation Quantity Recommendation

• Standard single cabinet door: Install 1 quarter-turn T-handle lock centered vertically on the door
• Tall or wide doors (>1200mm height): Install 2 locks (top and bottom) or 1 lock with additional hinge support
• Note: Ensure the cam is properly sized for the specific cabinet door-frame configuration to achieve secure latching

Maintenance Instructions

1. Suitable for both indoor and outdoor environments with IP65 protection; for extreme salt spray or strong chemical environments, regular rinsing with fresh water is recommended
2. Wipe the bright chrome plated T-handle and housing periodically with a soft dry or slightly damp microfiber cloth to remove dust, fingerprints and grease; avoid abrasive cleaners or scouring pads that may scratch the chrome finish
3. Apply a small amount of graphite or dry lubricant to the lock core (MZ314-1 / MZ314-1M) annually to maintain smooth key operation; avoid oil-based lubricants that may attract dust
4. Check the mounting nut tightness quarterly to prevent loosening from vibration
5. Inspect the sealing gasket annually for any signs of cracking, deformation or wear; replace if the IP65 seal is compromised
6. Inspect the bright chrome plating annually for scratches or corrosion; for coastal applications, rinse with fresh water periodically to remove salt deposits
7. Test the quarter-turn 90° operation quarterly to verify smooth locking and unlocking; lubricate the shaft if any binding is detected
8. Verify that the cam remains securely attached to the shaft and provides consistent latching force
9. For customizable shaft length variants, periodically verify the shaft has not shifted and cam engagement remains proper

Product Summary

MZ314-1 series is a quarter-turn T-handle industrial cabinet lock manufactured from high-quality zinc alloy housing and 60mm T-handle with bright chrome plating, featuring a durable white zinc plated steel shaft (C8 smooth or M10 threaded), IP65 waterproof rating, 90° quarter-turn operation, square cutout mounting (20.175mm) and four functional variants (MZ314-1 with lock core C8 shaft, MZ314-2 without lock core C8 shaft, MZ314-1M with lock core M10 threaded shaft, MZ314-2M without lock core M10 threaded shaft) with customizable shaft length. Its zinc alloy bright chrome construction provides premium appearance and corrosion resistance, the ergonomic T-handle enables high-torque gloved operation, the IP65 sealing ensures reliable dust and water protection, the four variants offer flexible security and mounting configuration, and the customizable shaft length accommodates various cabinet depths. With its robust performance, premium appearance and versatile options, it is an ideal locking solution for electrical cabinets, distribution boxes, server racks, communication equipment, machinery enclosures, outdoor enclosures and various industrial applications requiring secure, weather-resistant T-handle quarter-turn locking hardware.
