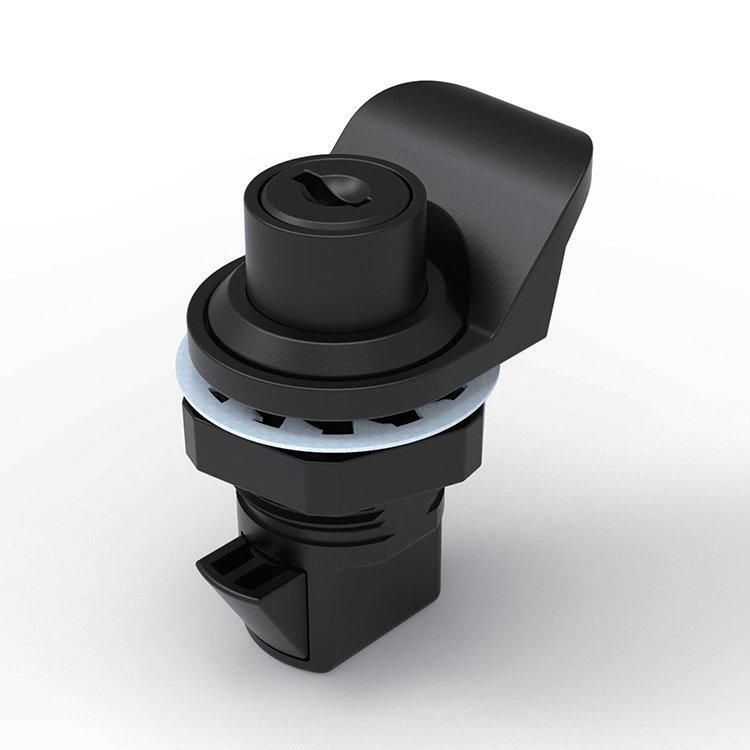

The MY750-1 K333 cam lock is a zinc alloy cylinder lock with a K333 key cylinder and a black powder coated finish for cabinet and enclosure doors.
A 90° rotation of the key drives the galvanized steel cam to open or close the door.
Typical applications include electrical cabinets, control panels and industrial enclosures. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY750-1 | K333 cam lock | Zinc alloy housing and insert, galvanized steel cam | Powder coating (black) | K333 |

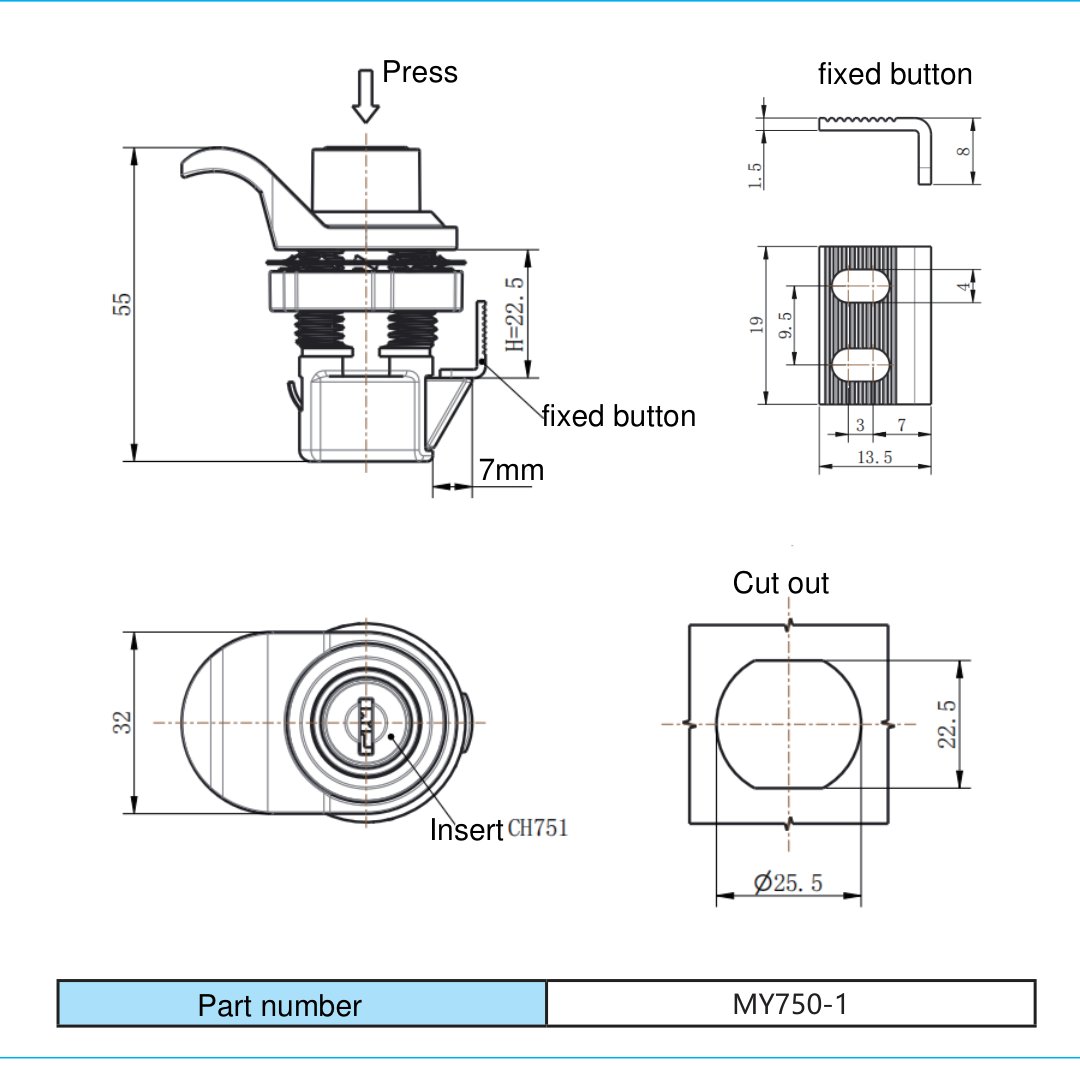

Dimension Drawing & Cut-out
FAQ
Q: What key does the MY750-1 use?
A: A K333 key.
Q: What is the finish?
A: Black powder coating.
Q: How does it open and close?
A: A 90° rotation of the key drives the cam to open or close the door.
Q: Where is it used?
A: Electrical cabinets, control panels and industrial enclosures.
