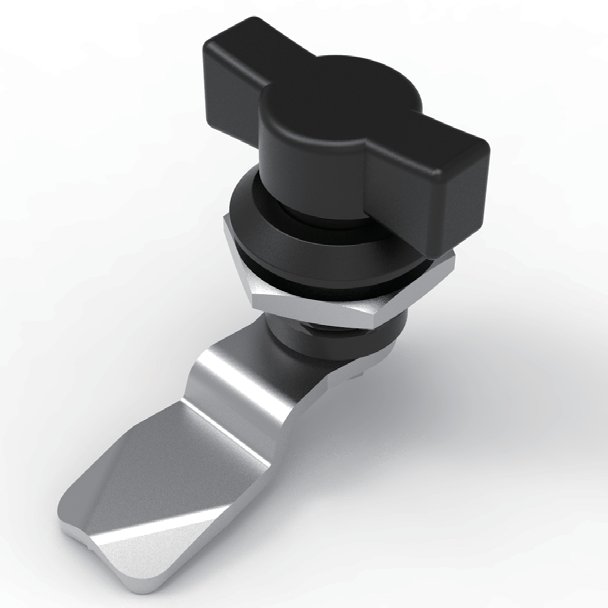

The MY714-2 handle type cam lock pairs a zinc alloy housing with a PA (nylon) handle and a black powder coated finish, giving a comfortable handle grip for cabinet and enclosure doors.
It is supplied in four housing lengths — GH18, GH28, GH32 and GH36 — and a 90° rotation opens or closes the door.
Typical applications include electrical cabinets, network cabinets and control panels. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY714-2-1 / -2 / -3 / -GH32 | handle type cam lock, GH18/28/36/32 | Zinc alloy housing, PA handle, galvanized steel cam | Powder coating (black) | — |

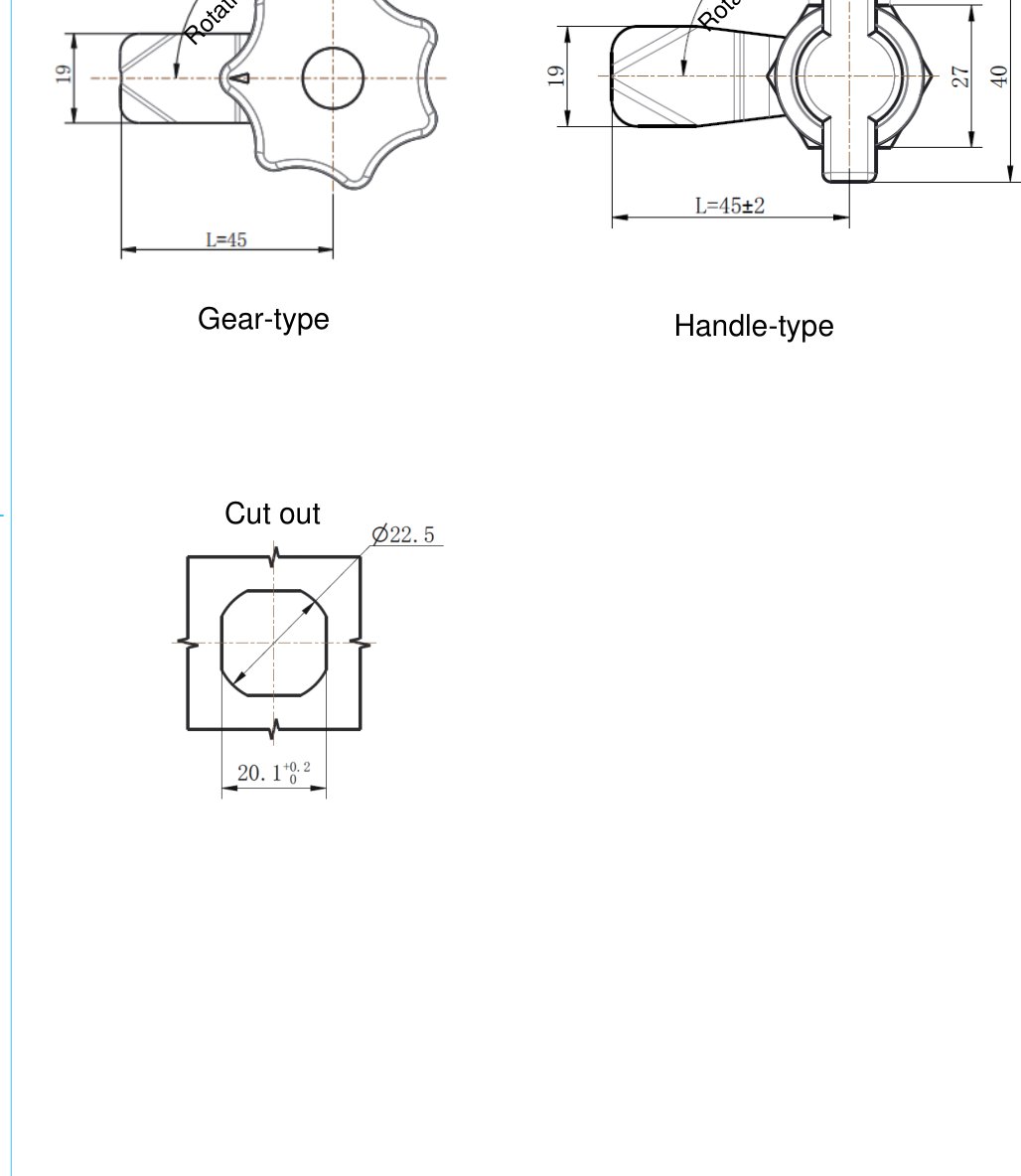

Dimension Drawing & Cut-out
FAQ
Q: What is the handle made of on the MY714-2?
A: PA (nylon), for a comfortable, non-slip grip.
Q: What housing lengths are available?
A: GH18, GH28, GH32 and GH36 mm.
Q: How does it open and close?
A: A 90° rotation of the handle opens or closes the door.
Q: Where is it used?
A: Electrical cabinets, network cabinets and control panels.
