MP606-2 Series Zinc Alloy Swing-Handle Lock, Adjustable Compression Cabinet Latch for Industrial Enclosures
MP606-2 series zinc alloy swing-handle lock is an adjustable compression cabinet latch. It adopts quick-open structure for easy assembly. Two surface options: black powder coating or bright chrome plating. MP606-2 with insert (Key CH751), MP606-2A without insert. Adjusting screw supports grip distance control.
MP606-2 series zinc alloy swing-handle lock is a flush mount adjustable compression latch built for industrial metal enclosures. Housing, handle and button are all made of zinc alloy, paired with steel screw. Two surface treatments available: black powder coating or bright chrome plated housing.
This zinc alloy swing-handle lock features quick-open design and simple assembly. The built-in adjusting screw realizes grip distance control. Adjustable grip H1=0~15 mm, total grip H=27.5 mm. Standard cut-out dimension 25 × 86 mm for convenient cabinet installation.

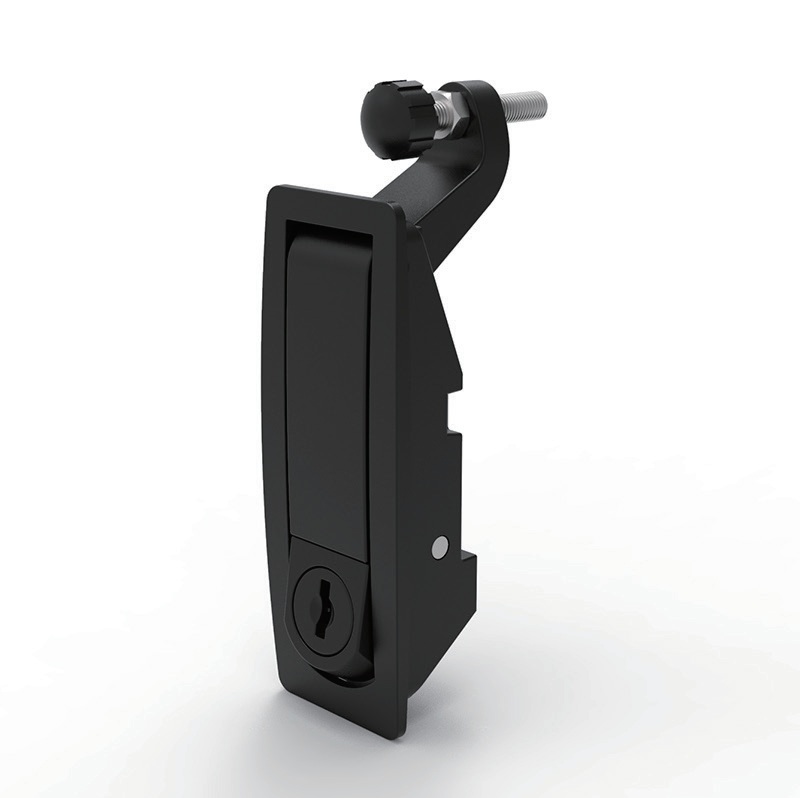

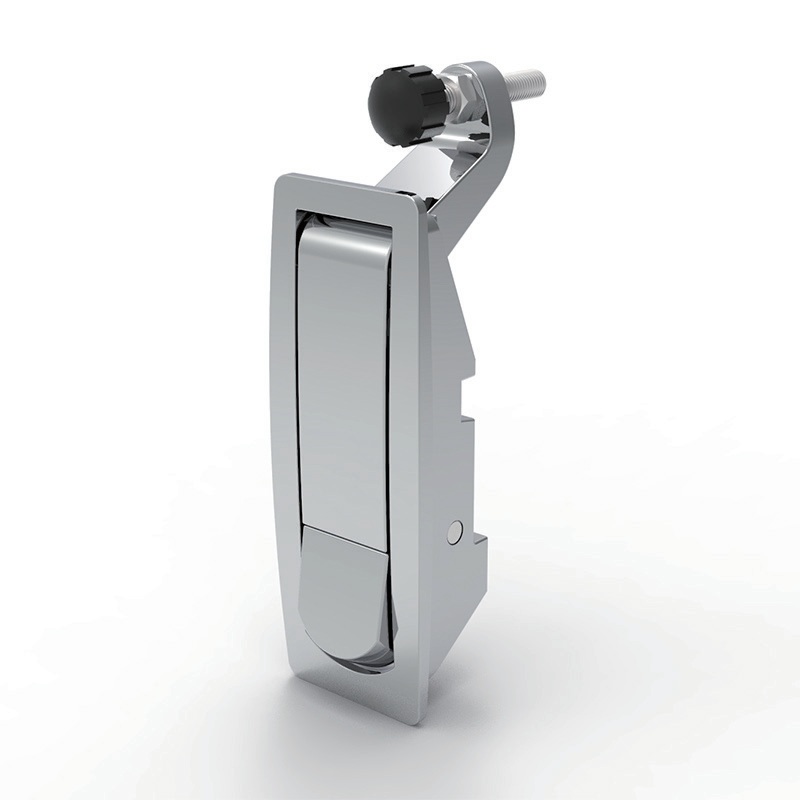

Two variants to choose: MP606-2 with insert, supplied with Key CH751; MP606-2A without insert, for custom cylinder installation.

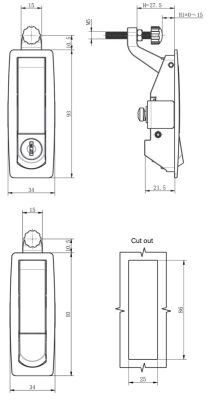

Widely applied in power distribution cabinets, telecom cabinets, data center cabinets, energy storage cabinets and industrial control enclosures. Dimension drawings and cut-out templates are provided for cabinet fabrication.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP606-2 | With insert | Zinc alloy housing, handle & button, steel screw | Black powder coating / Bright chrome plated | Key CH751 |
| MP606-2A | Without insert | Zinc alloy housing, handle & button, steel screw | Black powder coating / Bright chrome plated | No cylinder insert |
FAQ
Q: What materials make up MP606-2 series swing-handle lock? A: Housing, handle and button are zinc alloy, with steel screw.
Q: What surface finishes are available? A: Black powder coating or bright chrome plated housing.
Q: What is the adjustable grip range? A: Adjustable grip H1=0~15 mm, total grip H=27.5 mm via adjusting screw.
Q: What is the difference between MP606-2 and MP606-2A? A: MP606-2 comes with insert and Key CH751; MP606-2A has no insert for custom cylinder installation.
Q: What is the cabinet cut-out dimension? A: Standard cut-out size: 25 × 86 mm.
Q: What cabinets can this zinc alloy swing-handle lock apply to? A: Power distribution cabinets, telecom cabinets, energy storage cabinets and industrial control enclosures.
{
