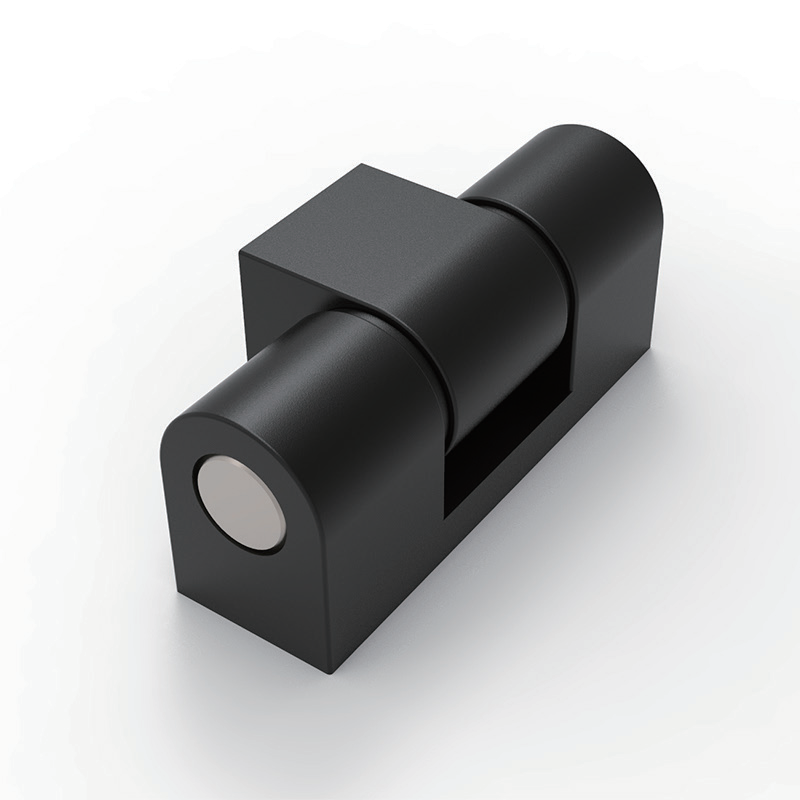

Basic Technical Parameters

• Model No.: CL222
• Material: Die-cast zinc alloy main body + solid steel pivot pin
• Surface Finish: Electrostatic matte black powder coating
• Overall Length: 45mm
• Mounting Method: 2 internal M6 threaded holes (direct screw locking, no nuts needed)
• Maximum Opening Angle: 180° full flat opening
• Disassembly Method: Vertical split lift-off structure, lift door upward directly to separate without tools

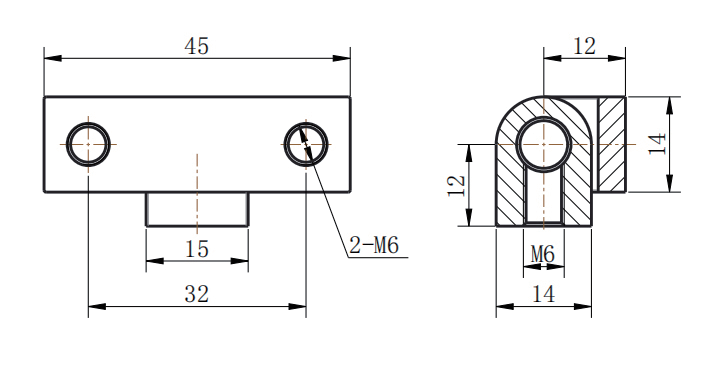

• Outer Outline Size: 45(L) ×14(H) ×14(W) mm

Core Product Advantages

1. High Precision Zinc Alloy Die Casting

One-piece high-pressure die-casting molding with tight dimensional tolerance, closed barrel structure effectively blocks dust, debris and minor impact, stable rotation with low noise, suitable for long-term continuous use in factory workshop environments.

2. Hardened Wear-Resistant Steel Pivot Pin

Central rotating shaft adopts solid steel pin, greatly improves shear resistance and friction resistance compared with alloy pins. Tens of thousands of opening and closing cycles without loosening, bending or stuck, effectively reduce after-sales replacement cost.

3. M6 Internal Thread Hole Simplified Installation

Equipped with two pre-tapped M6 threaded blind holes on the fixed base, directly lock with M6 machine screws from the outside, no need for back-side nut operation, save assembly time for cabinet manufacturers and batch production lines, neat and flush installation surface.

4. Scratch-Resistant Matte Black Powder Coating

Thick powder coating layer features excellent anti-scratch, anti-collision, anti-fading and oil-proof performance. Low-gloss black industrial appearance, fingerprint-resistant and easy to wipe, matches the unified hardware style of power, automation and communication equipment.

5. Tool-Free 180° Lift-Off Structure

180° unlimited full opening lets the cabinet door lay flat against the panel, maximize internal operating space for wiring overhaul and component replacement. Split lift-off design speeds up on-site installation, equipment transportation and cabinet batch assembly efficiency.

Main Application Scenarios

1. Small electrical control boxes, terminal junction boxes, frequency converter casings and PLC instrument enclosures
2. Laboratory testing equipment housings, medical device protective shells, precision instrument cabinet doors
3. Network weak current boxes, small charging pile control panels, automation accessory protection covers
4. Mini sheet metal equipment cabinets requiring compact hidden hinges and full opening maintenance
5. Standard industrial equipment projects with unified black matte hardware aesthetic requirements

Installation & Maintenance Guide

Installation Steps

1. Mark two hole positions on the cabinet frame according to 32mm center distance of M6 threaded holes.
2. Drill through holes on the mounting plate, screw M6 bolts directly into the hinge internal threads and lock tightly.
3. Fix the movable half on the cabinet door panel with screws.
4. Align the hinge barrel and drop the door down to engage; test 180° full opening and smooth lift-off detachment.

Installation Quantity Suggestion

• Door height ≤ 400mm: Install 2 hinges symmetrically
• Door height 400–700mm or slightly heavy metal door: Add one middle hinge for anti-sagging and load sharing.
