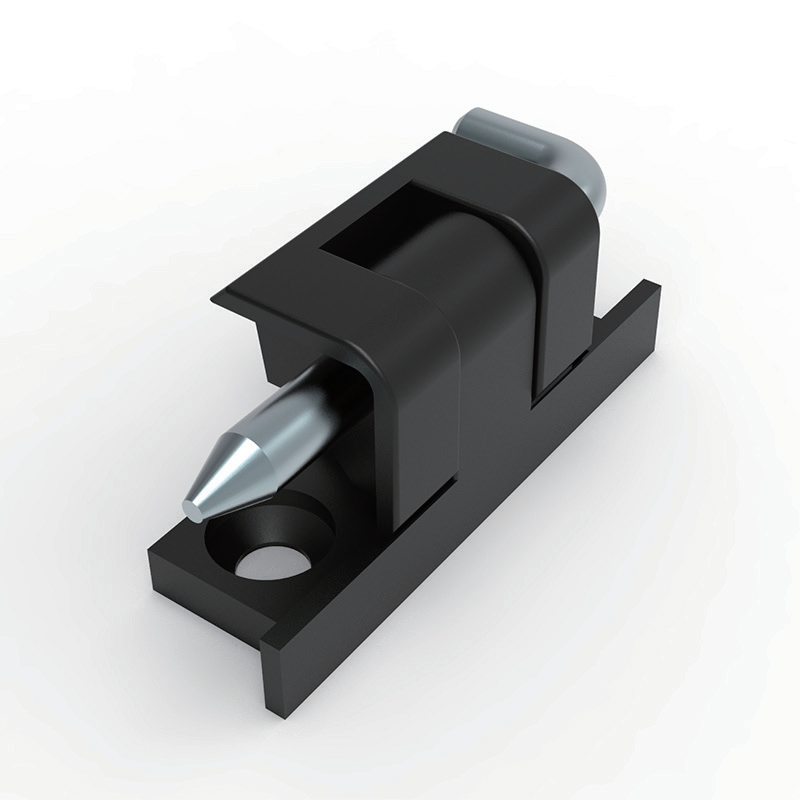

CL211 Series 58mm Zinc Alloy Matte Black Powder Coated Lift-Off Detachable Hinge with Steel Pin (CL211-1 for 1.5mm Panel / CL211-2 for 2.0mm Panel)

Full Technical Specifications

General Series Parameters

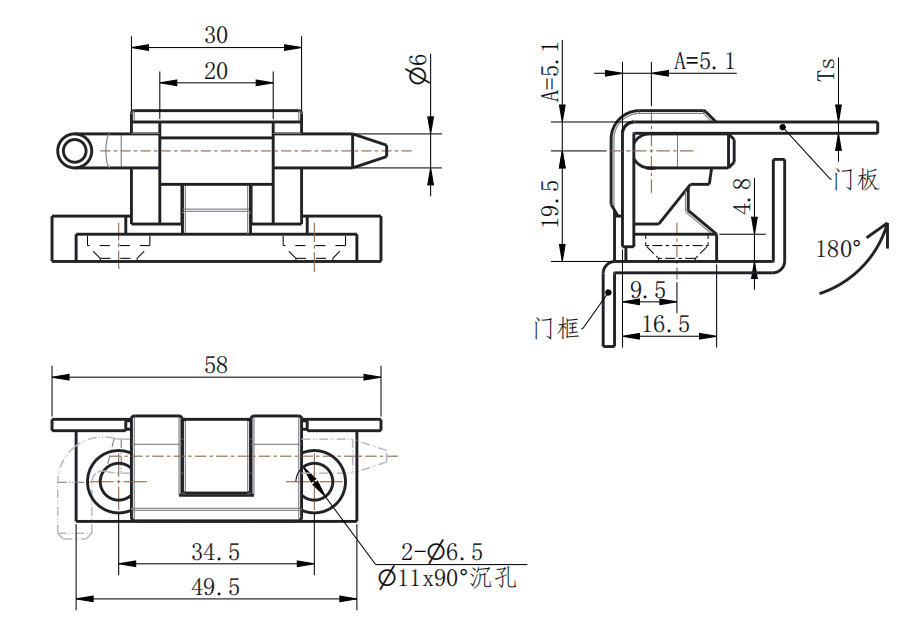

• Model: CL211-1 (Ts=1.5, A=4.6) / CL211-2 (Ts=2.0, A=5.1)
• Material: Die-cast zinc alloy housing + solid steel pivot pin
• Surface Finish: Black electrostatic powder coating
• Overall length: 58mm
• Mounting holes: 2×Φ6.5 holes with Φ11 90° countersunk sink holes
• Hole center distance: 34.5mm
• Max opening angle: 180 degrees flat open
• Core structure: Spring-loaded tapered quick-release lift-off pin

Version Differentiation

1. CL211-1: Designed for 1.5mm thickness sheet metal door panels, offset dimension A=4.6
2. CL211-2: Designed for 2.0mm thickness sheet metal door panels, offset dimension A=5.1

Core Product Features & Advantages

2.1 Detachable Lift-Off Quick Disassembly Structure

The tapered steel spindle can be directly pulled out to separate the door leaf from the frame without disassembling screws. Greatly simplifies cabinet door removal for large equipment maintenance, wiring overhaul, batch production assembly and on-site replacement.

2.2 Hard-Wearing Steel Pivot Pin

Central rotating shaft adopts solid steel pin, far superior to zinc alloy pin in shear resistance and abrasion resistance. It resists long-term frequent opening wear, avoids pin bending, loosening and jamming, ensures stable rotation thousands of times.

2.3 Matte Black Powder Coating Finish

Electrostatic black powder spraying forms a thick, tough protective layer on zinc alloy surface. Compared with electroplating, it has stronger scratch resistance, anti-fading, anti-oxidation and oil stain resistance, with low-key industrial matte appearance, not easy to leave fingerprints.

2.4 Two Sizes Matched Standard Thin Sheet Metal

Customized two offset sizes precisely match the most commonly used 1.5mm and 2.0mm cabinet sheet metal thickness in the industry. No gasket or modification needed during installation, perfectly fits folded edge structure of standard electrical cabinet doors.

2.5 Countersunk Flat Mounting Design

Two 90-degree countersunk holes allow flat head screws to sink completely into the hinge base, keeping the mounting surface smooth and protruding-free, not interfering with door closing and cabinet internal layout.

Application Scenarios

1. Indoor electrical control cabinets, distribution boxes, PLC and frequency converter enclosures
2. Automation equipment housings, testing instruments, inspection devices and laboratory equipment casings
3. Network communication cabinets, server side panels, industrial terminal junction boxes
4. Equipment requiring frequent door disassembly for overhaul, wiring and component replacement
5. Standard sheet metal cabinet mass production projects with 1.5mm / 2.0mm door plates

Selection & Installation Guide

4.1 How to Choose Model

• Choose CL211-1: If your cabinet door sheet metal thickness is 1.5mm
• Choose CL211-2: If your cabinet door sheet metal thickness is 2.0mm

4.2 Installation Steps

1. Align the hinge base on cabinet frame, drill holes according to 34.5mm hole spacing.
2. Fasten with flat head screws into 90° countersunk holes for flush mounting.
3. Hang the door leaf onto the tapered steel pin, push down to lock in place.
4. Test 0–180° opening and pull pin to verify smooth detachment.

4.3 Installation Quantity

Install 2 hinges symmetrically for door height below 500mm; add the 3rd hinge in the middle for taller or heavier metal doors to prevent sagging.

4.4 Maintenance Tips

Suitable for dry indoor environments. Avoid corrosive gas, heavy dust and high humidity workshops. Wipe powder coated surface with dry cloth regularly; add light lubricant on steel pin for smoother lifting and rotation.

Product Summary

CL211 series is a practical detachable lift-off cabinet hinge made of zinc alloy with black powder coating and durable steel spindle. It provides two dimensional options to fit 1.5mm and 2.0mm standard thin sheet metal panels, supports 180° full opening and tool-free door removal, serving as a reliable standardized hardware for industrial electrical enclosures and automation equipment casings.
