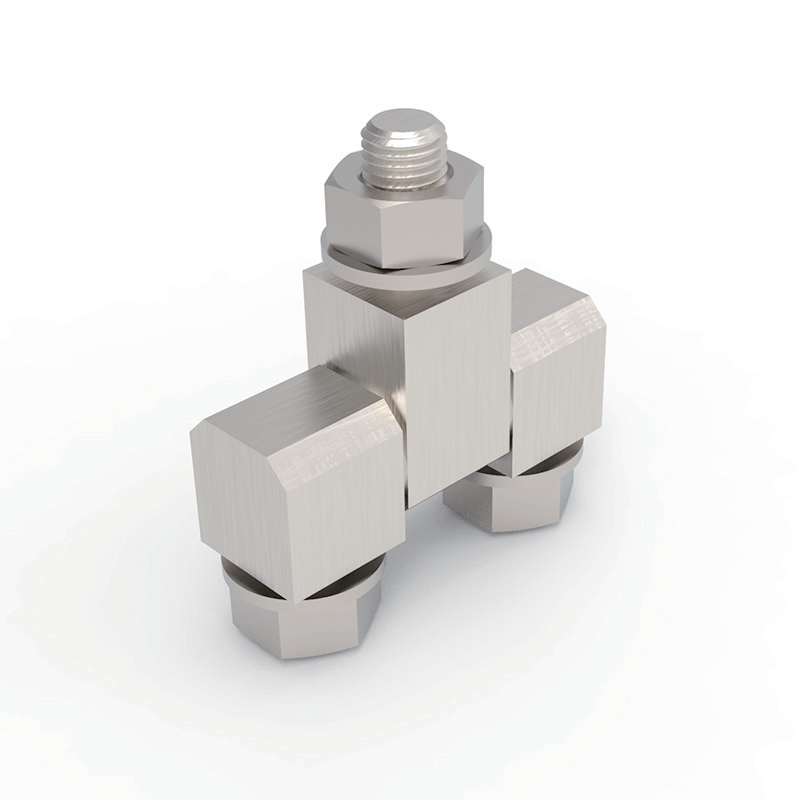

CL206-5S SUS304 Stainless Steel Wire Drawing Welded Type Lift-Off Split Detachable Heavy Load Industrial Cabinet Hinge

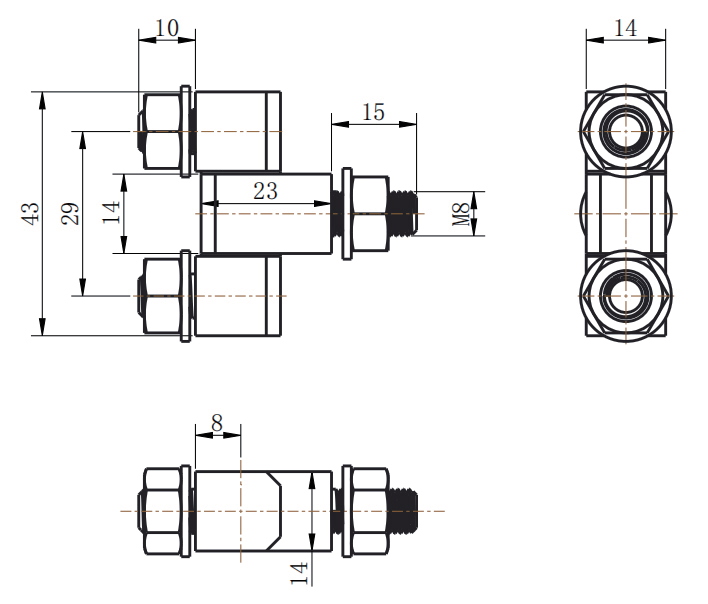

Full Technical Specifications

• Model Number: CL206-5S
• Raw Material: SUS304 Stainless Steel
• Surface Treatment: Wire drawing brushed finish
• Total Overall Height: 43mm
• Main Body Width: 14mm
• Fastening Structure: M8 external threaded bolt with lock nut for through-hole mounting
• Connection Mode: Two halves welded directly onto cabinet frame and door panel
• Rotation Type: Middle separable lift-off pivot, vertical upward quick door removal
• Structure Feature: Hexagonal block integrated machining, high structural rigidity

Core Product Features & Competitive Advantages

2.1 Full SUS304 Stainless Steel, Superior Anti-Corrosion Performance

Whole hinge is precision machined from solid SUS304 stainless steel, completely avoids rust, oxidation and corrosion problems of zinc alloy and ordinary carbon steel hinges. It can operate stably long-term in outdoor open air, coastal salt fog, high humidity, water splashing, chemical workshop and other harsh corrosive working environments, greatly extending hardware service life.

2.2 Durable Wire Drawing Brushed Surface

Professional wire drawing brushed process brings matte textured surface:

• Anti-scratch and wear-resistant, resistant to daily friction damage;
• Fingerprint-resistant, easy to clean and maintain;
• Industrial minimalist metallic texture, matching stainless steel equipment chassis, outdoor power boxes and mechanical protective covers perfectly.

2.3 Weld-On Heavy-Duty Installation Structure

This is a dedicated welded mounting hinge, the two square hinge blocks can be fully welded and fixed on metal cabinet door and frame respectively. The welding connection provides ultra-high bearing capacity, ideal for thick metal doors, heavy equipment housings and large industrial enclosures that require strong load support, effectively preventing door sagging and hinge deformation after long-term frequent use.

2.4 M8 Threaded Bolt Locking Design

Equipped with standard M8 external thread bolt and matching lock nut, can be used for through-hole penetration installation on thin panels besides welding method. The lock nut can lock the rotation tightness of the hinge pivot, adjust opening damping according to actual needs, prevent automatic loose falling of heavy cabinet doors.

2.5 Tool-Free Vertical Lift-Off Detachable Pivot

Split central shaft separable design allows users to lift the cabinet door straight upward to separate two hinge blocks without any tools. Greatly simplifies equipment internal overhaul, wiring maintenance, component replacement and deep cabinet cleaning work, improves post-maintenance operation efficiency.

2.6 Bidirectional Universal Rotation Design

Single CL206-5S hinge fits both left-opening and right-opening cabinet doors, reduces inventory SKU quantity and eliminates direction selection errors during on-site installation and welding construction.

Main Application Scenarios

1. Outdoor heavy electrical distribution boxes, outdoor communication equipment cabinets, coastal salt fog anti-corrosion metal enclosures
2. Industrial machinery protective safety covers, large stainless steel equipment chassis and test instrument housings
3. Food processing machinery, pharmaceutical sanitary equipment, water treatment and environmental protection device cabinets
4. Thick steel plate heavy load cabinets, engineering vehicle control boxes, mining and workshop anti-rust equipment housings
5. All high-humidity, splash-prone, corrosive and outdoor scenarios requiring long-term durable stainless steel hardware

Selection & Installation Operation Guide

4.1 Installation Two Optional Methods

1. Welding Fixing (Recommended for Heavy Load): Directly fully weld the two hinge square blocks on the cabinet frame and door panel, maximum load bearing and stability.
2. M8 Bolt Through Mounting: Drill matching through holes on thin metal panels, pass M8 screw through and fasten with lock nut, suitable for light weight removable equipment boxes.

4.2 Quantity Matching Suggestion

If the cabinet door weight exceeds 15KG or door width is over 500mm, install two or more CL206-5S hinges symmetrically to share pressure and ensure stable operation.

4.3 Daily Maintenance Tips

Regularly wipe the wire drawing surface to remove dust and stains; add a small amount of anti-rust lubricant on the split pivot joint to guarantee smooth lifting and rotation, avoid jamming caused by dust accumulation.

Product Summary

CL206-5S is a heavy-duty welded lift-off hinge made of full SUS304 stainless steel with wire drawing brushed finish. Adopting robust welded fixed structure plus adjustable M8 threaded locking pivot, with tool-free separable quick door removal function, it is a high-reliability professional hardware solution for heavy load, outdoor, damp, corrosive industrial metal cabinets and mechanical equipment housings.

CL206-5S SUS304 stainless steel wire drawing weld on lift off hinge M8 thread bolt detachable industrial cabinet hinge
