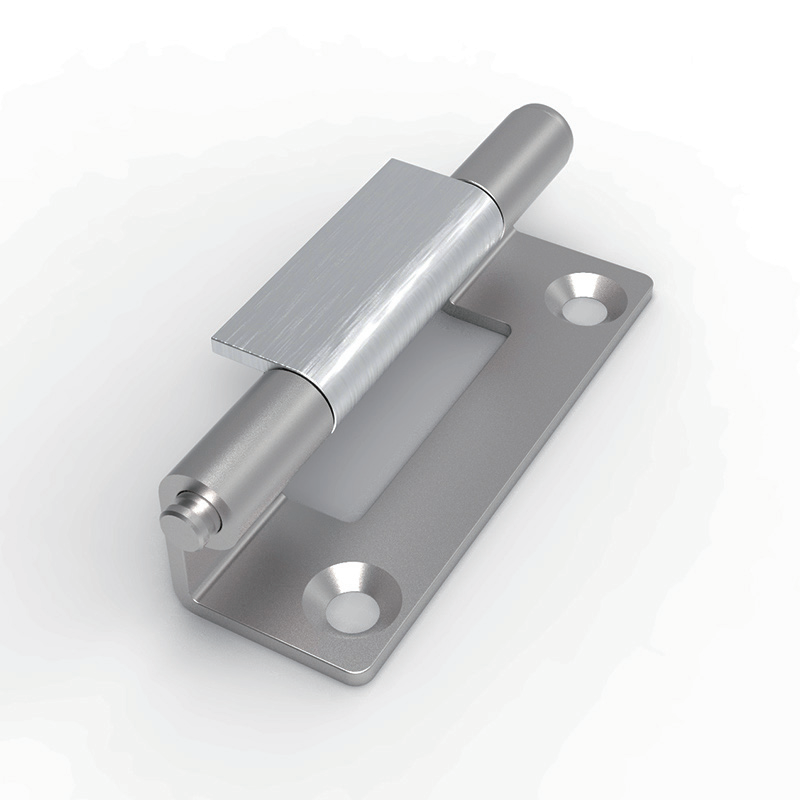

CL167-2S Magnetic Polished Stainless Steel Lift-Off Detachable Industrial Hinge

CL167-2S is a heavy-duty separable lift-off hinge fabricated from solid stainless steel with magnetic polishing bright finish. Its core feature is the split removable pin structure, allowing the door leaf to be directly lifted off the frame without unscrewing the whole hinge, greatly simplifying equipment maintenance, internal wiring, and door panel replacement. Adopted L-shaped bent mounting base and double 90° countersunk holes, it is widely applied to electrical control boxes, mechanical guard doors, testing instruments, and waterproof outdoor enclosures.

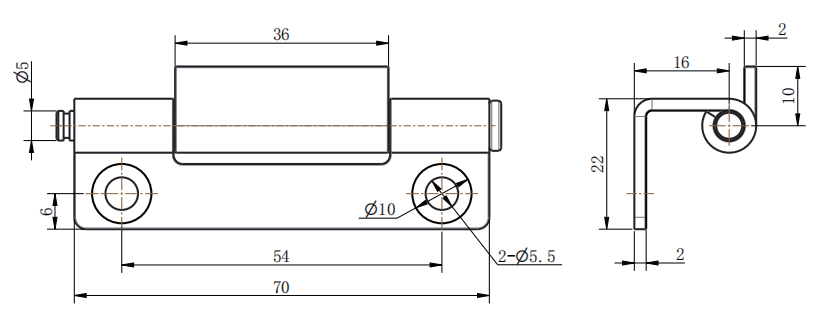

Complete Technical Specifications

• Model: CL167-2S
• Material: Stainless Steel
• Surface Treatment: Magnetic Polishing (Mirror bright finish)
• Structure: Lift-off / Detachable separable pin hinge
• Overall Total Length: 70mm
• Main Cylinder Length: 36mm
• Pivot Shaft Diameter: Φ5mm
• Mounting Holes: 2 pcs Through hole: Φ5.5, 90° countersunk sink: Φ10
• Plate Thickness: 2mm
• Bent Arm Height: 22mm

1. Detachable Lift-Off Pin Core Advantage

The separable pin design is the biggest highlight of CL167-2S. When equipment needs overhaul, wiring inspection or deep cleaning, users can directly lift the entire door upwards and separate it from the cabinet frame in seconds, no need to disassemble screws or hinges. It drastically improves after-sales maintenance efficiency, especially ideal for frequently opened inspection doors and removable equipment panels.

2. Magnetic Polishing Bright Corrosion-Resistant Surface

Magnetic polishing process forms a smooth mirror-like surface on stainless steel, effectively resisting oxidation, rust, fingerprints and minor scratches. It performs excellently in humid workshops, outdoor exposed equipment, and slightly corrosive working environments, extending the service life of the hardware.

3. L-Shaped Offset Bent Mounting Base

L-type folded bracket creates a reserved gap between cabinet body and door panel, avoiding friction during rotation. The 2mm thick stamped steel base provides stable load-bearing capacity, not easy to deform under long-term repeated opening and closing.

4. Dual Countersunk Flush Installation

Two evenly distributed 90° countersunk holes match M5 flat head screws perfectly, fully sinking screw heads into the base surface for a flat, tidy exterior of the cabinet. Two-point fixation ensures uniform force, preventing hole breakout on aluminum, steel and plastic door boards.

Core Selling Points

1. Quick Lift-Off Detachable Design Tool-free door removal, convenient for equipment inspection, maintenance and replacement.
2. Magnetic Polished Mirror Stainless Steel Superior anti-rust & anti-corrosion performance, elegant bright industrial appearance.
3. L-Shaped Offset Bent Bracket Reserve rotation clearance, eliminate door and cabinet collision interference.
4. Solid 2mm Thick Load-Bearing Plate Anti-deformation, durable for thousands of opening cycles.
5. Double Flush Countersunk Holes Hidden screw installation, neat cabinet surface, stable fixing effect.

Typical Application Scenarios

1. Electrical distribution cabinets, PLC control boxes, inverter and automation equipment enclosures
2. Mechanical equipment protective guards, machine tool inspection doors, production line safety covers
3. Laboratory testing instruments, medical diagnostic device casings, precision analysis equipment panels
4. Outdoor waterproof junction boxes, solar power equipment housings, roadside communication terminal boxes
5. Food and beverage processing machinery, environmental protection equipment, sewage treatment control cabinets

Installation & Selection Guidelines

1. Left/Right Opening Confirmation: Confirm door swing direction before ordering to match lift-off orientation.
2. Screw Matching: Use M5 flat head 90° countersunk screws to fit Φ10 sink holes for fully hidden mounting.
3. Load Suggestion: For wider or heavier door panels, install two CL167-2S hinges symmetrically for balanced stress.
4. Pivot Lubrication: Add a small amount of grease to the Φ5 separable pin regularly to reduce friction noise and wear.
5. Environment Note: Not suitable for long-term immersion in strong acid/alkaline liquid to protect polished surface.

Product Summary

CL167-2S magnetic polished stainless steel lift-off hinge solves the pain point of difficult door disassembly for industrial equipment. Combined with separable quick-release pin, mirror anti-corrosion finish, offset bent bracket and stable two-point countersunk mounting, it lowers maintenance labor cost and improves cabinet overall aesthetics, being a practical standard hardware for various industrial enclosures and removable access doors.
