CL115-1 Mirror Polished Stainless Steel 180 Degree Strap Hinge

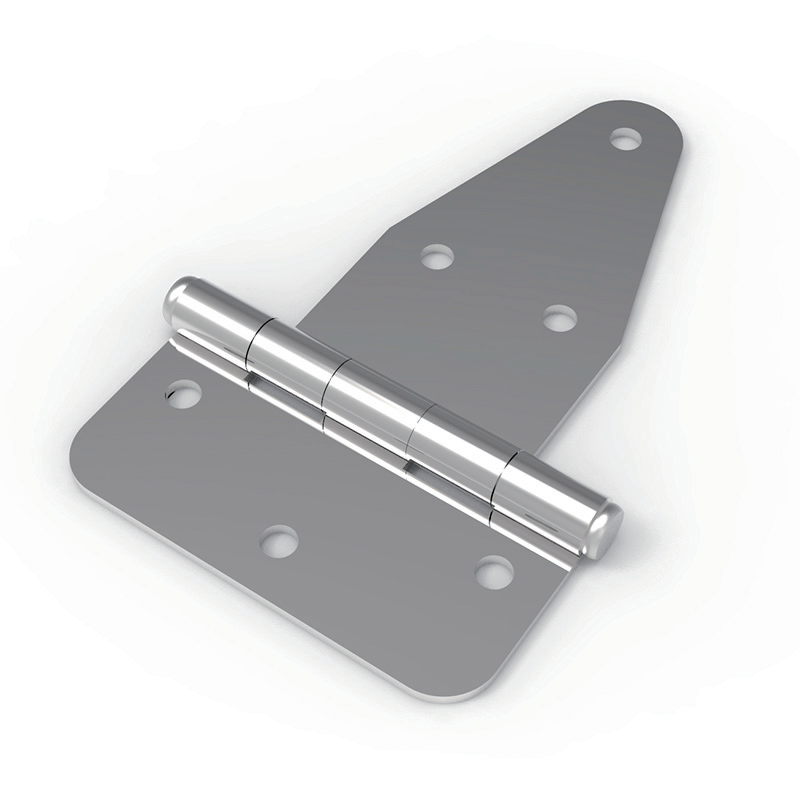

CL115-1 mirror polished stainless steel strap hinge is a heavy-duty long-arm industrial hinge manufactured from solid stainless steel with premium mirror polishing treatment. Adopting a triangular extended arm structure and six symmetrical mounting holes, it supports 180-degree complete flat opening. Outstanding anti-rust and anti-corrosion performance makes it widely used in marine equipment, outdoor electrical cabinets, food machinery, chemical industry enclosures and all kinds of damp and corrosive working scenarios.

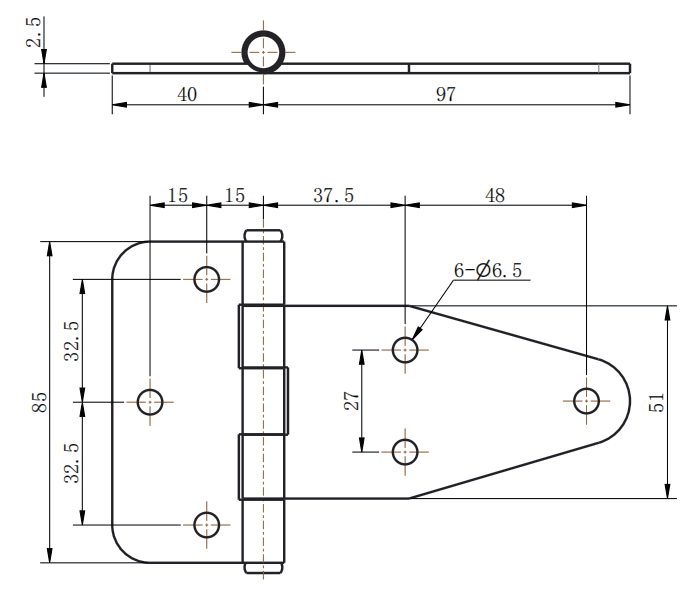

Complete Technical Parameters

• Model No.: CL115-1
• Material: Thick Solid Stainless Steel
• Surface Treatment: High Gloss Mirror Polishing
• Opening Angle: 180° maximum flat opening
• Mounting Holes: 6 holes, diameter Φ6.5
• Plate Thickness: 2.5mm
• Overall Length: 137mm (40mm + 97mm)
• Structure: Triangular long arm strap hinge

The 2.5mm thick stamped stainless steel plate provides strong load-bearing capacity and anti-deformation ability, perfectly supporting medium and heavy weight cabinet doors. Mirror polishing removes all surface burrs and crevices, greatly reducing the attachment of water, salt spray, dust and corrosive liquids, which effectively blocks rust sources and prolongs the service life in harsh environments. Six Φ6.5 holes are reasonably distributed on the rectangular base and triangular extension arm, dispersing stress evenly during repeated opening and closing to avoid screw loosening and hinge tilt caused by long-term vibration.

Core Product Advantages

1. Superior Stainless Steel Corrosion Resistance Stainless steel raw material resists oxidation, rust, salt spray and mild chemical erosion, far superior to zinc alloy and carbon steel hinges. It is the preferred hardware for coastal, marine, humid workshop and food processing equipment.
2. Premium Mirror Polished Aesthetic & Hygiene Mirror bright surface is easy to wipe and clean, no dead corners for dirt accumulation, meeting sanitation requirements of food, pharmaceutical and medical equipment. The sleek metallic appearance also upgrades the overall grade of finished cabinets.
3. Triangular Long Arm Stable Force Structure Extended triangular arm increases the force arm length, improves torque bearing performance, reduces torsion fatigue of the hinge shaft, and keeps rotation smooth even under long-term frequent use.
4. Six-Point Symmetrical Fixed Installation 6-hole layout enhances installation firmness, suitable for large-size door panels and vibrating equipment host shells, effectively solving the problem of insufficient fixation of 2-hole or 4-hole ordinary hinges.
5. Standard 180° Full Opening Function 180-degree flat flip releases the maximum internal operation space, convenient for wiring overhaul, component replacement, internal cleaning and equipment routine maintenance.

Main Application Scenarios

1. Marine yacht hatches, ship electrical boxes, offshore platform control enclosures and coastal outdoor power cabinets
2. Food processing machinery, beverage equipment, pharmaceutical production line protective casings and stainless steel equipment frames
3. Chemical workshop control boxes, wastewater treatment equipment housings and dust-proof industrial electrical cabinets
4. Outdoor generator boxes, solar power distribution cabinets, public facilities waterproof metal enclosures
5. Large mechanical equipment protective doors, test bench instrument cabinets and stainless steel tool storage boxes

Installation & Selection Notes

1. Match M6 standard flat head screws for Φ6.5 mounting holes to ensure flush installation and flat surface.
2. This model is specially designed for humid, salt fog and corrosive environments; choose powder coated steel or zinc alloy hinges only for dry indoor ordinary cabinets to save cost.
3. Apply a small amount of anti-rust lubricant on the hinge pin regularly to keep rotation flexible and prevent sticking caused by salt and dust buildup.
4. Calculate door weight in advance: this strap hinge fits medium-heavy doors, super heavy oversized doors need double sets or thicker stainless steel hinge models.

Product Summary

To conclude, CL115-1 mirror polished stainless steel strap hinge focuses on anti-corrosion, high load and easy cleaning demands of harsh environment equipment. With solid stainless steel substrate, mirror polishing finish, triangular long arm mechanical design and six-point stable installation, it overcomes the rust failure and insufficient bearing defects of conventional metal hinges, becoming a standardized reliable hardware fitting for marine, food, chemical and outdoor enclosure manufacturers.
